TOPIC: Oil pressure/level switch. 85 zn1300

Oil pressure/level switch. 85 zn1300 1 month 2 days ago #25182

  • StanG
  • StanG's Avatar
  • Offline
  • Platinum Sixer
  • Platinum Sixer
  • Posts: 1929
  • Thank you received: 226
The last extractions broke two extractors buried inside the drilled out bolts. What saved me was a Dremel with s flex attachment and carbide bit. It went through the extractor and then I removed carefully all the rest of the bolt until I saw threads. Next, all cleaned up really nice using a pick tool and a tap.
1982 Kawasaki KZ1300 A4
1981 Kawasaki KZ1300 A3
assembling engine, chassis & electrical from 79 - 89 parts

Please Log in or Create an account to join the conversation.

Oil pressure/level switch. 85 zn1300 1 month 2 days ago #25183

  • Rage10
  • Rage10's Avatar Topic Author
  • Offline
  • Senior Sixer
  • Senior Sixer
  • Posts: 50
  • Thank you received: 3
Drilled out to 1/4 with a left hand bit, nothing.
Tried a spiral screw extractor, it bottomed out and stripped out. I have a t30 tapped into there now. Ran out of fuel for the torch. Gonna heat it up later and try again. If that fails I might try soldering it in.
If that fails imma drill it out a lil more and try again. If that all fails imma do that dremmal shit and pull the threads out with a pick...
And my wife is like why do you keep buying project bikes if all I hear is cursing from the garage...

Please Log in or Create an account to join the conversation.

Oil pressure/level switch. 85 zn1300 1 month 2 days ago #25185

  • Kawboy
  • Kawboy's Avatar
  • Offline
  • Moderator
  • Moderator
  • Posts: 2037
  • Thank you received: 553
As far as ' cursing from the garage" just tell her it's shop talk. Without shop talk there is no triumphs when all turns rightous.

Please Log in or Create an account to join the conversation.

Oil pressure/level switch. 85 zn1300 1 month 21 hours ago #25188

  • Rage10
  • Rage10's Avatar Topic Author
  • Offline
  • Senior Sixer
  • Senior Sixer
  • Posts: 50
  • Thank you received: 3
I said the cursing helps get stuck shit out. And it did! Got the plug out!
T40 didnt work. Drilled out to 19/32 for the next size up, spiral screw extractor.
That stripped , but tapping in a T45 did the trick. Only issue now is my 8$ Amazon pressure switch doesnt fit.
Wife seems to have put away my calipers somewhere so I can't measure and see what's wrong.
Tried puting in a 1/8 plug I had laying around and that doesn't fit either. So I'm gonna assume the hole is undersized for some reason. Whatever. Figure it out later...

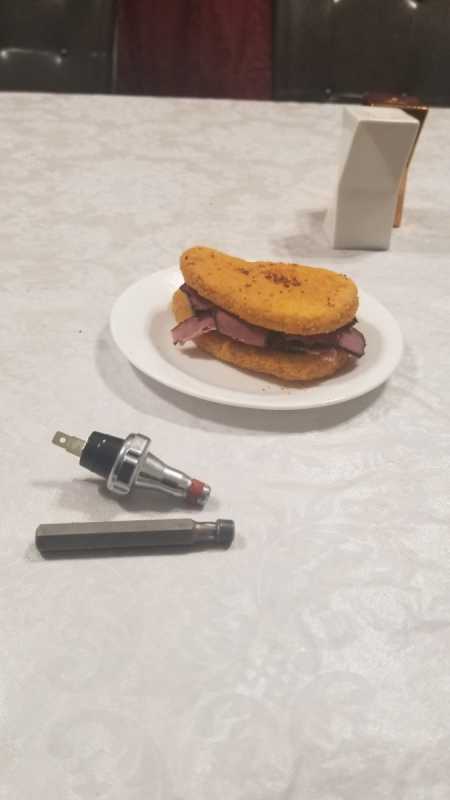

Pic included for reference. Ran outta bread for victory sandwich so i used some chicken nuggets.
Attachments:

Please Log in or Create an account to join the conversation.

Oil pressure/level switch. 85 zn1300 1 month 19 hours ago #25189

  • Kawboy
  • Kawboy's Avatar
  • Offline
  • Moderator
  • Moderator
  • Posts: 2037
  • Thank you received: 553

Please Log in or Create an account to join the conversation.

Oil pressure/level switch. 85 zn1300 3 weeks 5 days ago #25202

  • Rage10
  • Rage10's Avatar Topic Author
  • Offline
  • Senior Sixer
  • Senior Sixer
  • Posts: 50
  • Thank you received: 3
Welp, just put a tapered die on the pressure switch I had to make it fit in the tapered port. Got to finish the oil change then test it.
