Gear Indicator 3 weeks 2 days ago #28820

  • scotch
  • scotch's Avatar Topic Author
  • Offline
  • Sustaining Member
  • Sustaining Member
  • Posts: 1587
  • Thank you received: 658

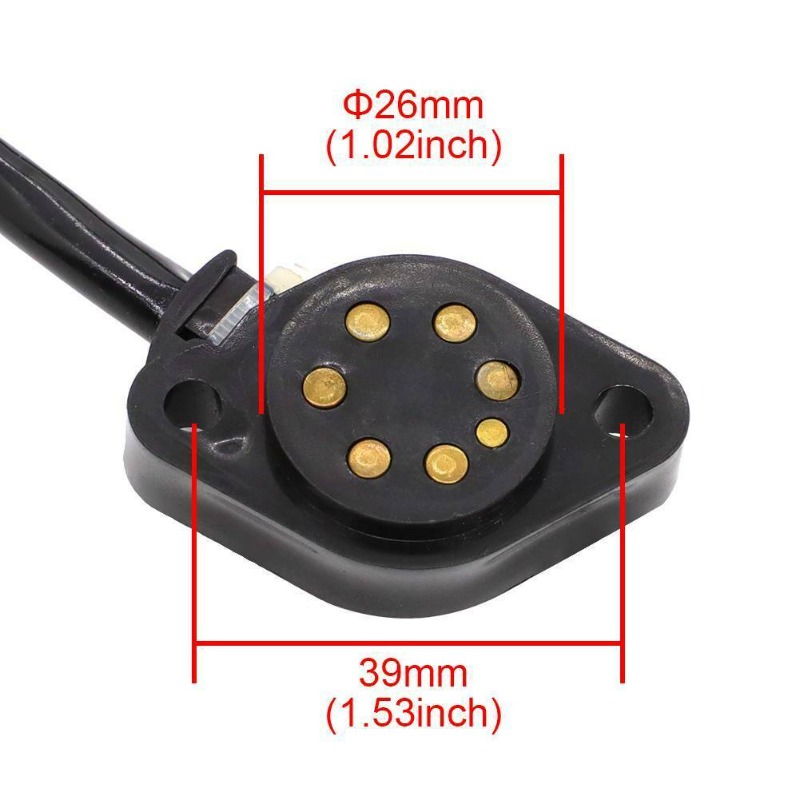

Believing the manufactured gear position stator I purchased wouldn't work due to conflicts with a fabricated contact and the "Pin Holder" bolt, I opted to make my own stator. With the bugs worked out and my working version now as a reference I have discovered that the stator pictured below will work. A much simpler contact design solved the problems and makes this project much easier for anyone attempting to tackle the project.

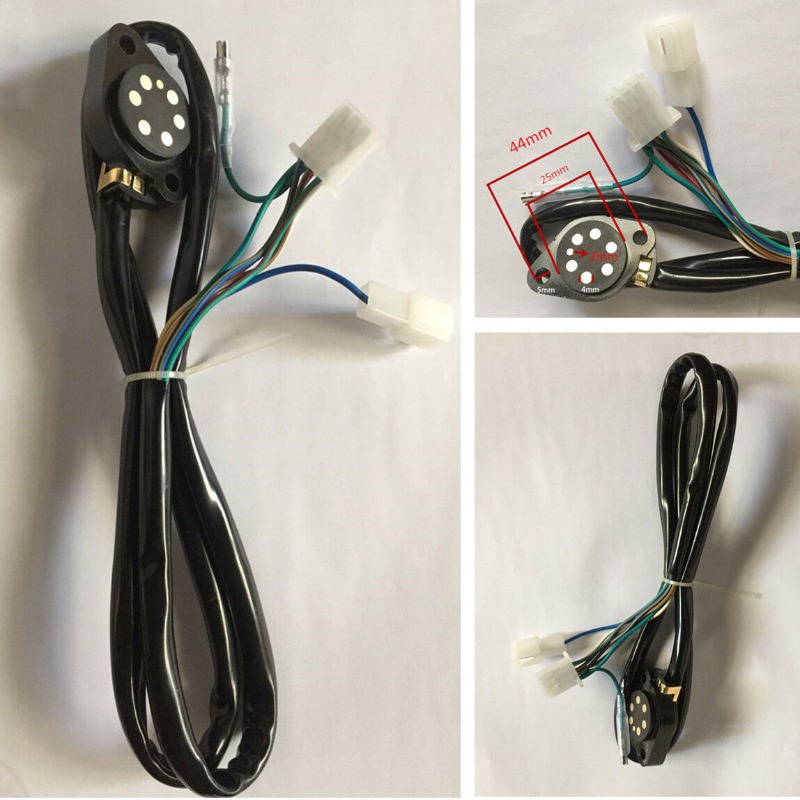

Stay away from this one ! Looks the same until you compare the contacts. Garbage !

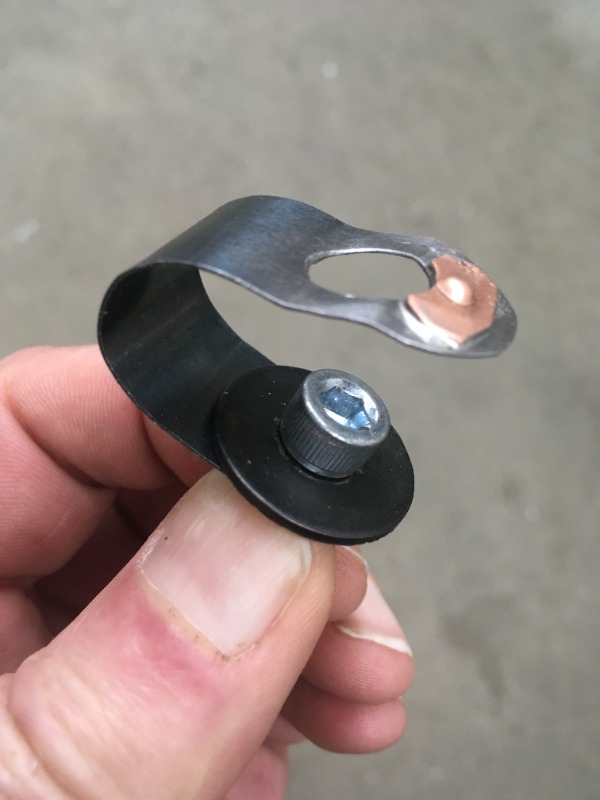

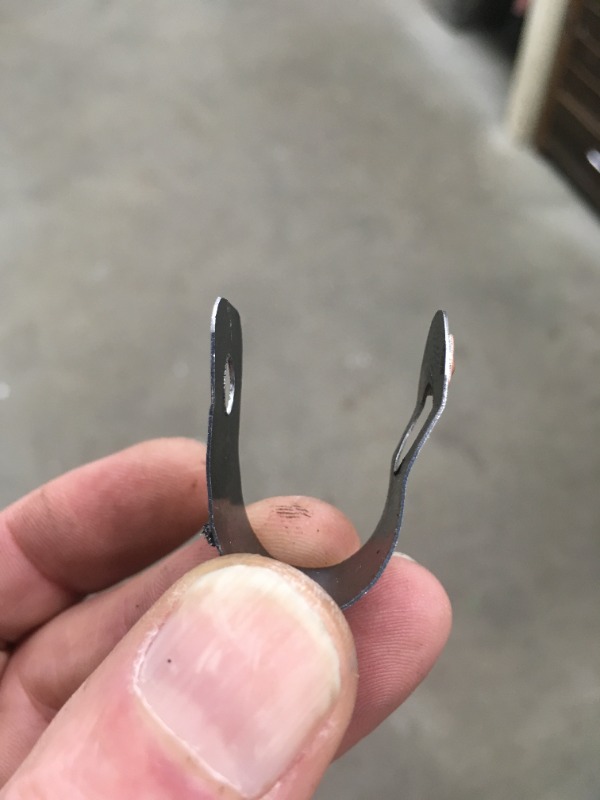

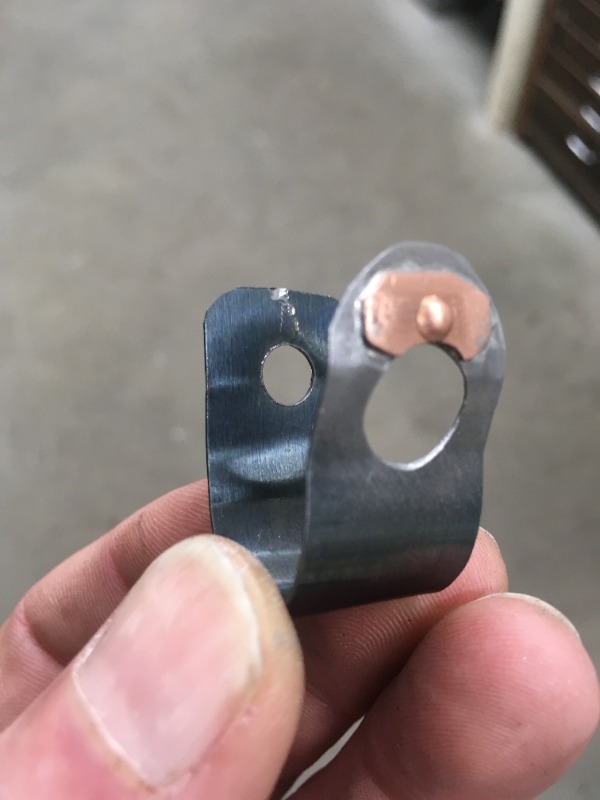

A simpler contact:

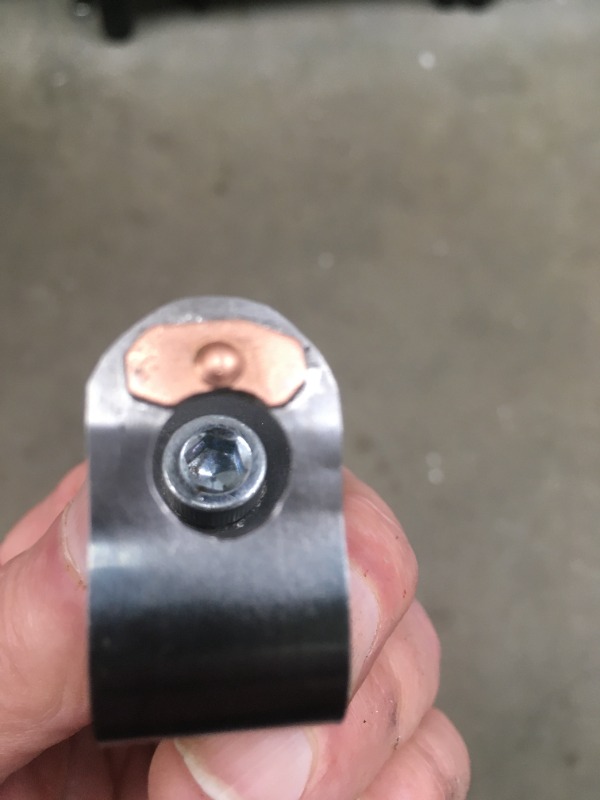

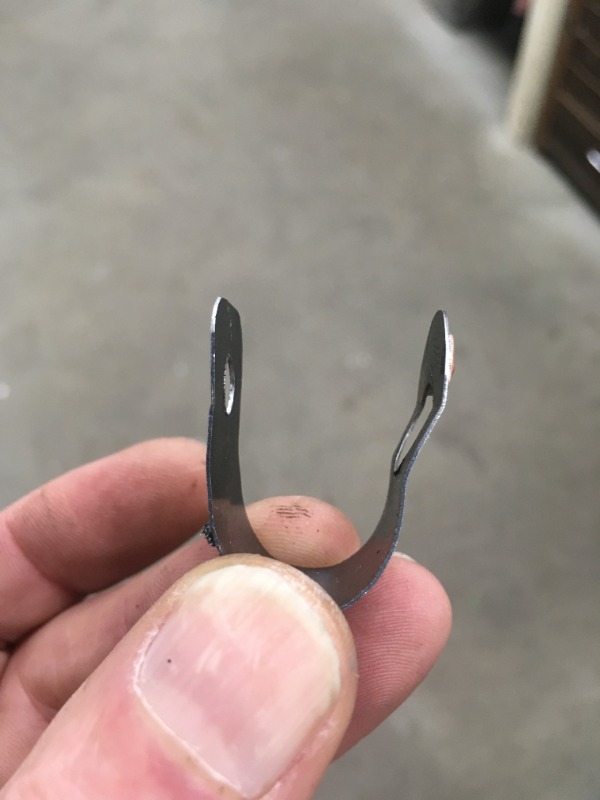

The 10mm "Pin Holder Bolt" needs to be replaced with an Allen head. Most switches have usable contacts inside. Something similar to the one in the photo can be soldered to the Steel-Banding. The large washer is necessary to reduce flexing of the spring-steel banding.

No more versions ! I promise !
1980 KZ 1300 sr# KZT30A-009997
Always High - Know Fear !
The following user(s) said Thank You: zed_thirteen

Please Log in or Create an account to join the conversation.

Last edit: by scotch.

Gear Indicator 2 weeks 6 days ago #28833

  • scotch
  • scotch's Avatar Topic Author
  • Offline
  • Sustaining Member
  • Sustaining Member
  • Posts: 1587
  • Thank you received: 658

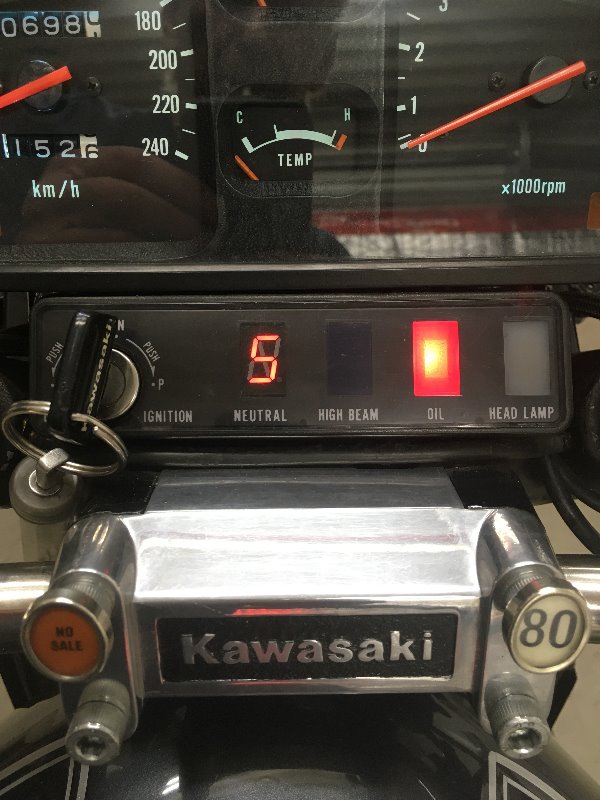

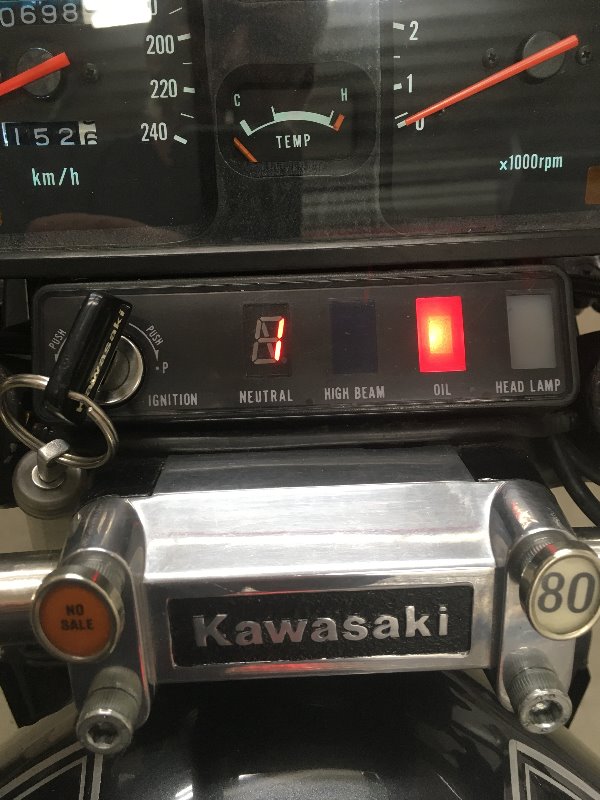

Hasn't been much else to do. -20c !




1980 KZ 1300 sr# KZT30A-009997
Always High - Know Fear !
Attachments:
The following user(s) said Thank You: Phil, zed_thirteen

Please Log in or Create an account to join the conversation.

Gear Indicator 2 weeks 5 days ago #28834

  • Bucko
  • Bucko's Avatar
  • Offline
  • Platinum Member
  • Platinum Member
  • Posts: 570
  • Thank you received: 136
That's very cool.
Hello from Canada's We(s)t coast.

Please Log in or Create an account to join the conversation.

Gear Indicator 2 weeks 5 days ago #28835

  • Kawboy
  • Kawboy's Avatar
  • Offline
  • Sustaining Member
  • Sustaining Member
  • Posts: 2412
  • Thank you received: 727
I knew you could do it !! SWEET !! Now it looks Factory. Well done !:cheer: :cheer:

Please Log in or Create an account to join the conversation.

Gear Indicator 2 weeks 5 days ago #28836

  • scotch
  • scotch's Avatar Topic Author
  • Offline
  • Sustaining Member
  • Sustaining Member
  • Posts: 1587
  • Thank you received: 658

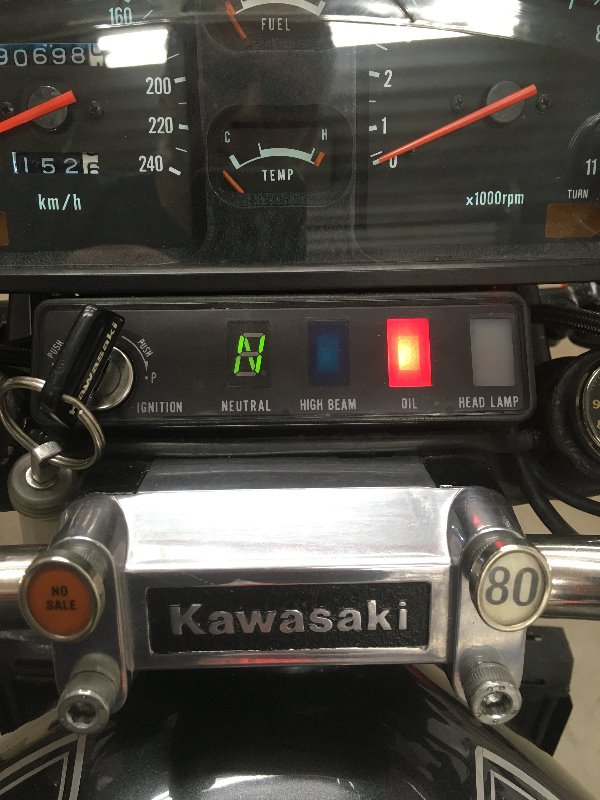

Now it looks Factory
It will when I get rid of the "Neutral". My label maker is outta tape.:angry:
And for the record: Aside from everything else; it took 3 hours just to remove the green lens with a #10 Exacto-blade !
1980 KZ 1300 sr# KZT30A-009997
Always High - Know Fear !

Please Log in or Create an account to join the conversation.

Gear Indicator 2 weeks 5 days ago #28838

  • Bar
  • Bar's Avatar
  • Offline
  • Elite Member
  • Elite Member
  • Posts: 179
  • Thank you received: 44
Looks really good !!! well done
you can sale it back to Kawasaki now ;)
1984 Kawasaki Voyager
2002 Honda CBR954
