TOPIC: 1979 Carb Rebuild (Pt 1)

1979 Carb Rebuild (Pt 1) 4 years 10 months ago #5422

  • scotch
  • scotch's Avatar Topic Author
  • Offline
  • Sustaining Member
  • Sustaining Member
  • Posts: 1277
  • Thank you received: 523

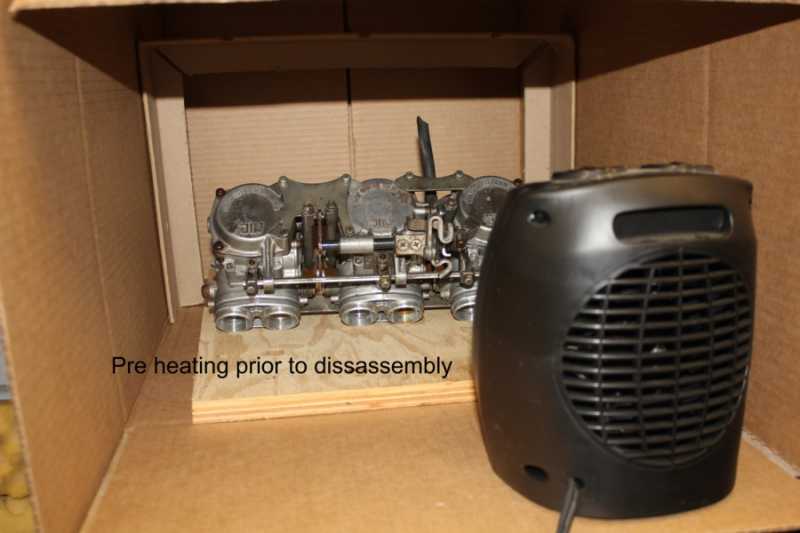

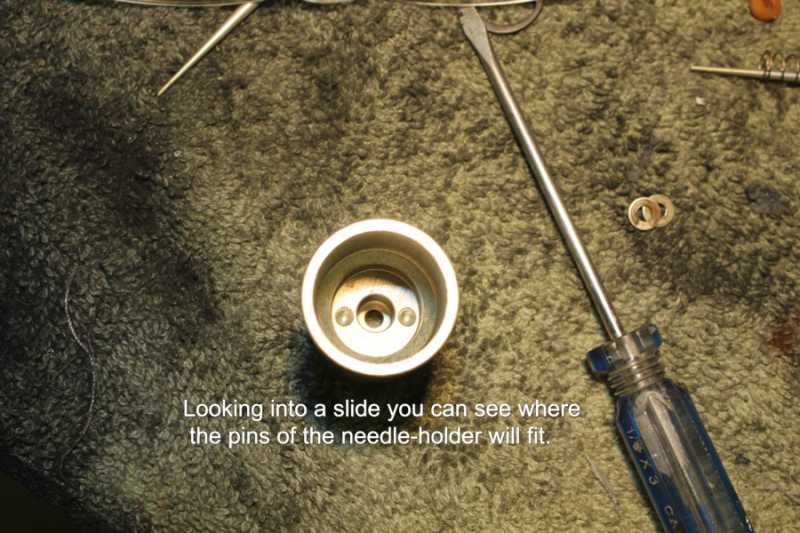

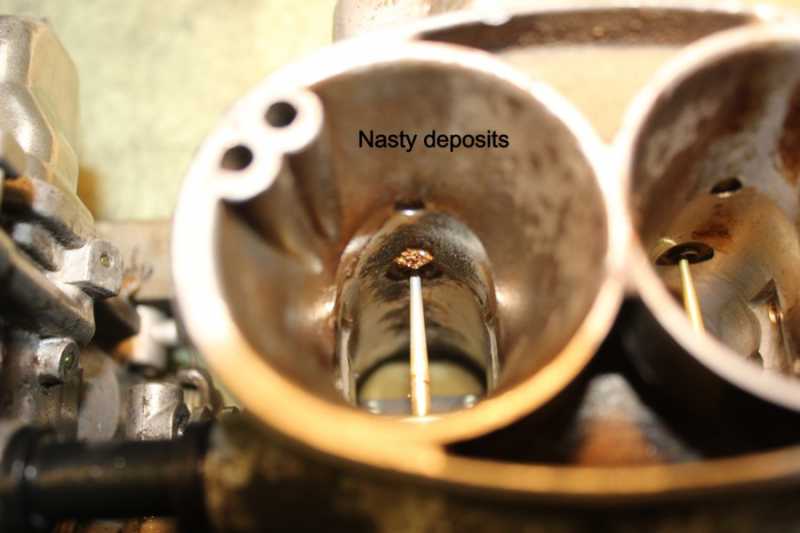

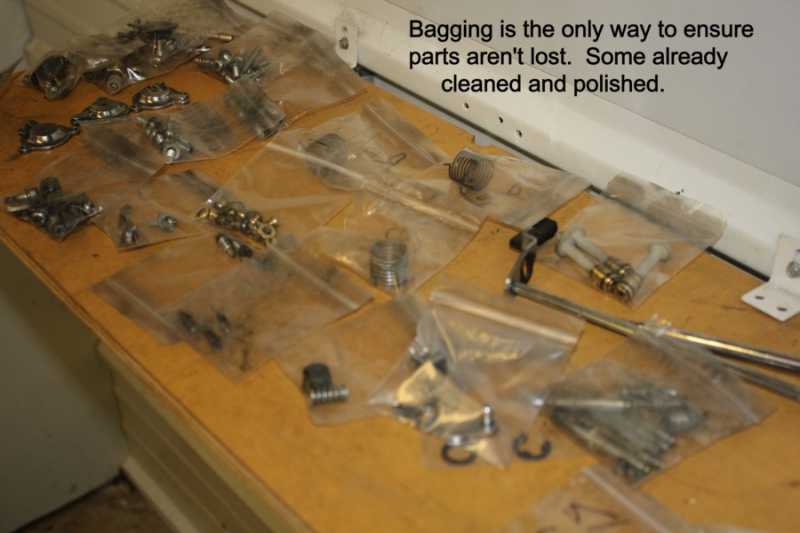

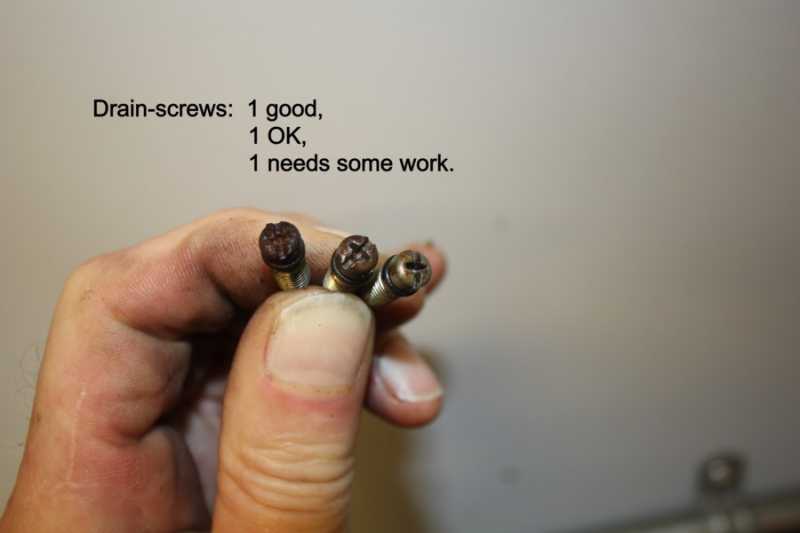

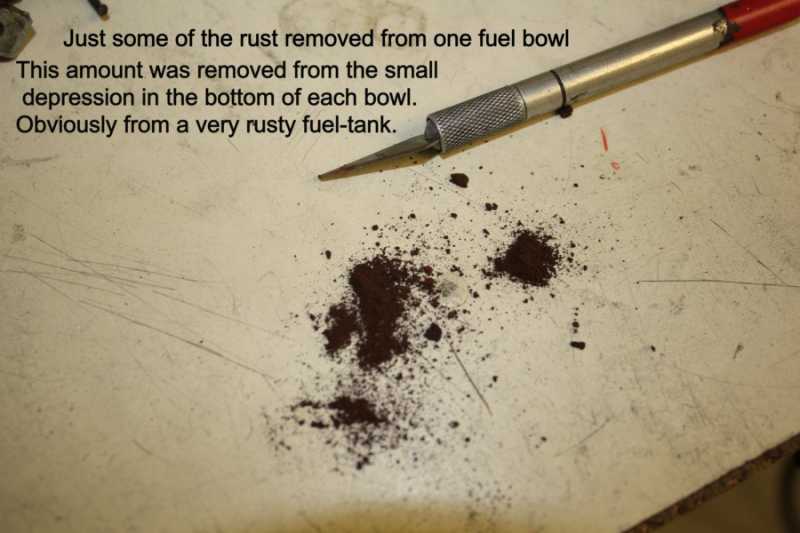

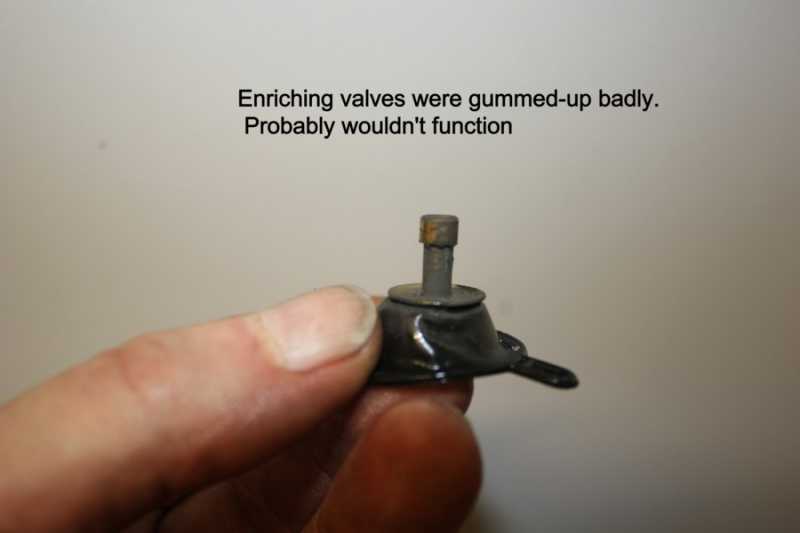

I just received a complete set of carbs from a '79 and thought some pictures and explanations of the complete tear-down and re-build may be of help to others. The pictures are self-explanatory. Part 2 of the tear-down to follow.










































1980 KZ 1300 sr# KZT30A-009997
Always High - Know Fear !
The following user(s) said Thank You: zed_thirteen, Haggler, Askar

Please Log in or Create an account to join the conversation.

Last edit: by KZQ.

Part 2: Complete rebuild 1979 carburettors 4 years 10 months ago #5423

  • scotch
  • scotch's Avatar Topic Author
  • Offline
  • Sustaining Member
  • Sustaining Member
  • Posts: 1277
  • Thank you received: 523
1980 KZ 1300 sr# KZT30A-009997
Always High - Know Fear !
The following user(s) said Thank You: mantelappel

Please Log in or Create an account to join the conversation.

Last edit: by scotch.

Part 2: Complete rebuild 1979 carburettors 4 years 10 months ago #5439

  • rob
  • rob's Avatar
  • Offline
  • Senior Sixer
  • Senior Sixer
  • Posts: 55
  • Thank you received: 12
Hi Scotch

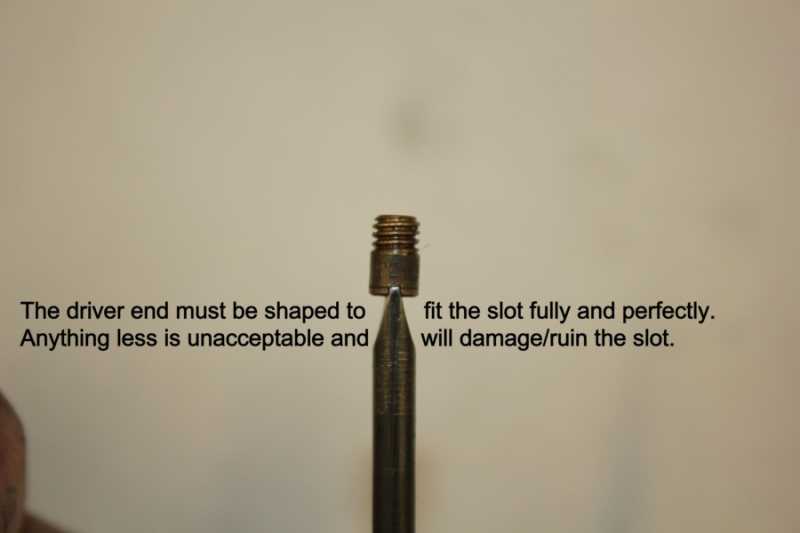

How do you remove the pilot air screws. I have a set where the previous owner has obviously burred the screw slots by not using the correct screwdriver. I am a bit stumped on this and am thinking that I would have to drill them out as a last resort.
Any ideas
Cheers
Rob

Please Log in or Create an account to join the conversation.

Part 2: Complete rebuild 1979 carburettors 4 years 10 months ago #5448

  • scotch
  • scotch's Avatar Topic Author
  • Offline
  • Sustaining Member
  • Sustaining Member
  • Posts: 1277
  • Thank you received: 523

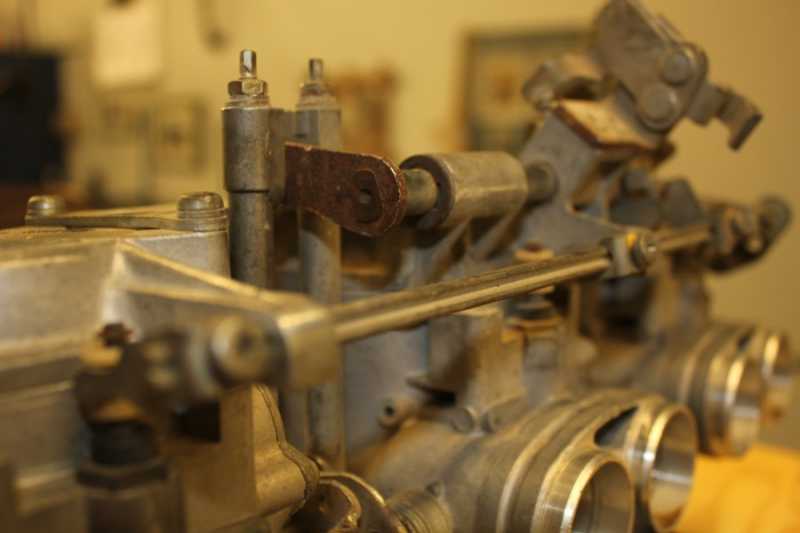

The tear-down continues: Some pictures may be out of apparent order !









































































1980 KZ 1300 sr# KZT30A-009997
Always High - Know Fear !
The following user(s) said Thank You: zed_thirteen

Please Log in or Create an account to join the conversation.

Last edit: by scotch.

Part 2: Complete rebuild 1979 carburettors 4 years 10 months ago #5449

  • scotch
  • scotch's Avatar Topic Author
  • Offline
  • Sustaining Member
  • Sustaining Member
  • Posts: 1277
  • Thank you received: 523

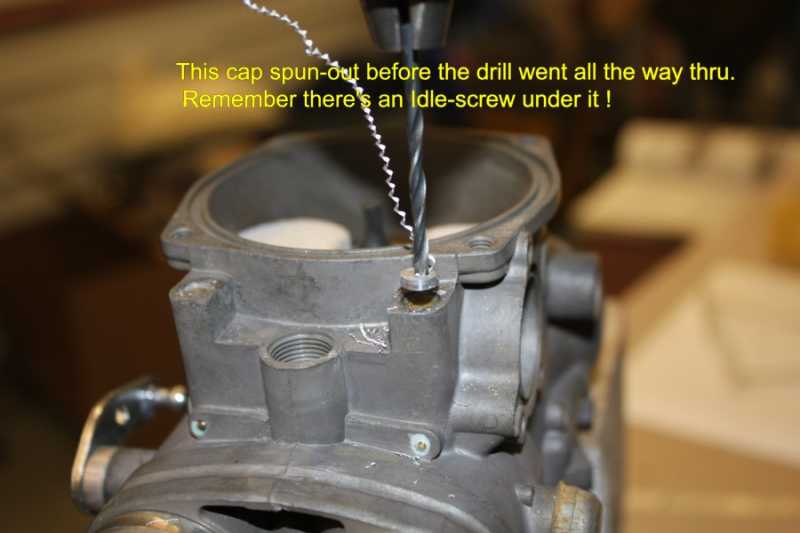

If the idle screws are buggered then you're going to have to try to screw them back down, drill them and use an extractor. The very thought sends chills up my spine!
1980 KZ 1300 sr# KZT30A-009997
Always High - Know Fear !

Please Log in or Create an account to join the conversation.

Last edit: by scotch.

Part 2: Complete rebuild 1979 carburettors 4 years 10 months ago #5450

  • scotch
  • scotch's Avatar Topic Author
  • Offline
  • Sustaining Member
  • Sustaining Member
  • Posts: 1277
  • Thank you received: 523

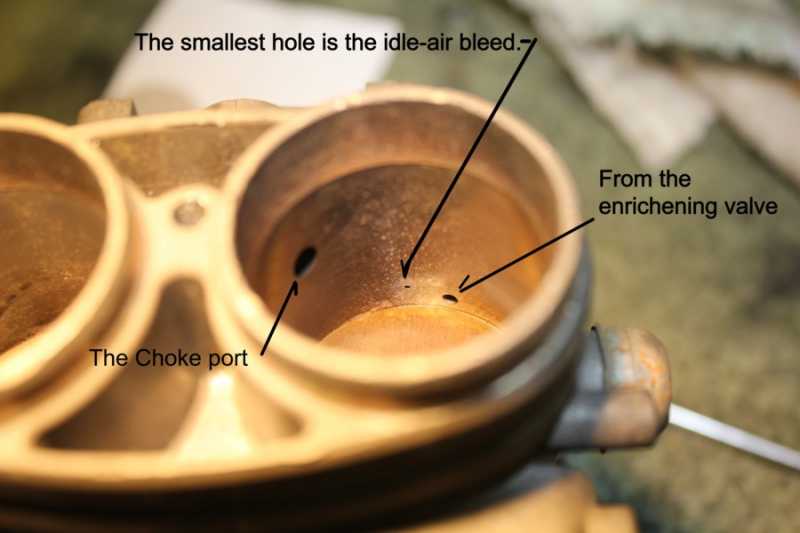

Re: Pictures 3827 and 3828 - What you see in the venturi is the stream of lacquer-thinner!

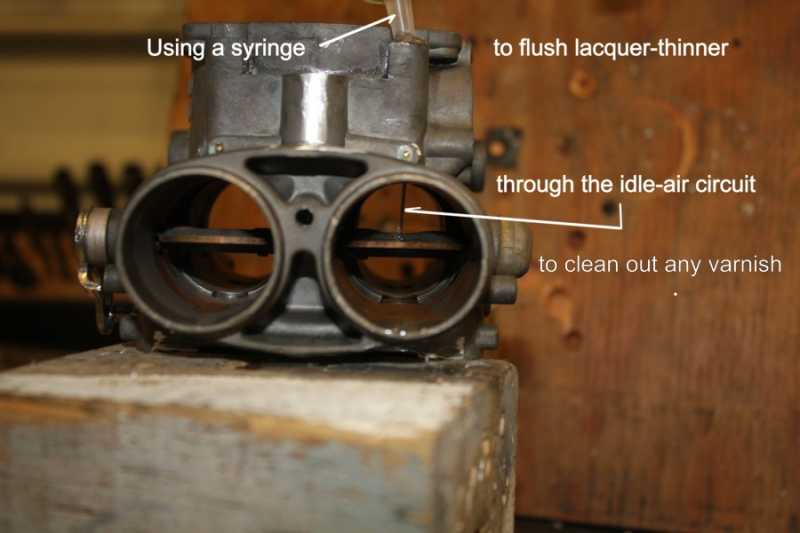

NOTE: The seals on the throttle shaft ends could be damaged if soaked excessively in strong cleaners such as lacquer-thinner. The use of lacquer-thinner for manual surface cleaning and gallery flushing using a syringe is OK.
1980 KZ 1300 sr# KZT30A-009997
Always High - Know Fear !
The following user(s) said Thank You: Bob4717, Shelbygt

Please Log in or Create an account to join the conversation.

Last edit: by scotch.
