3 years 10 months ago - 3 years 10 months ago #28820 by scotch
Replied by scotch on topic Gear Indicator

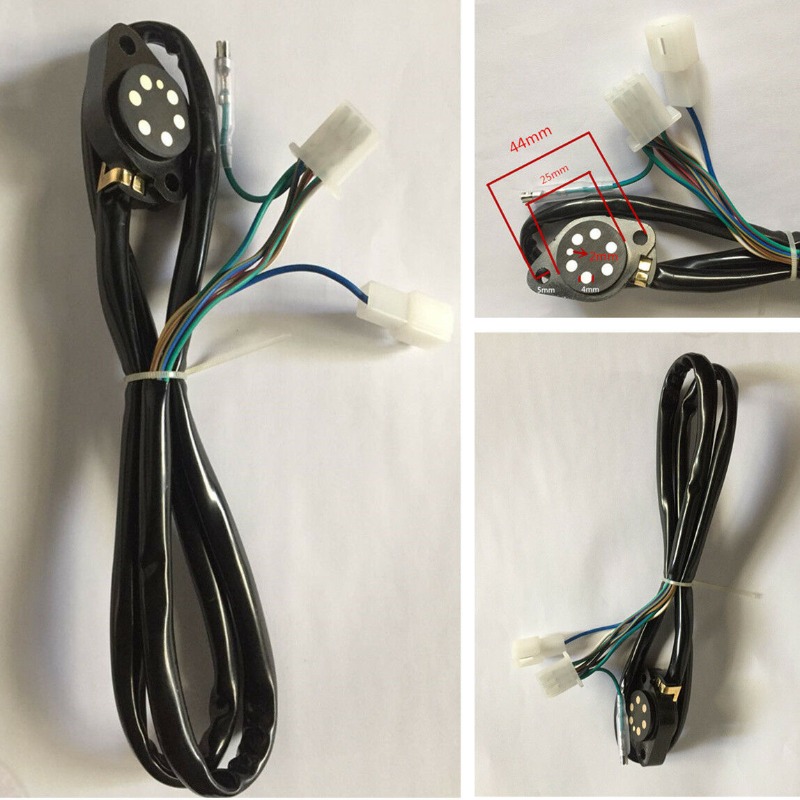

Believing the manufactured gear position stator I purchased wouldn't work due to conflicts with a fabricated contact and the "Pin Holder" bolt, I opted to make my own stator. With the bugs worked out and my working version now as a reference I have discovered that the stator pictured below will work. A much simpler contact design solved the problems and makes this project much easier for anyone attempting to tackle the project.

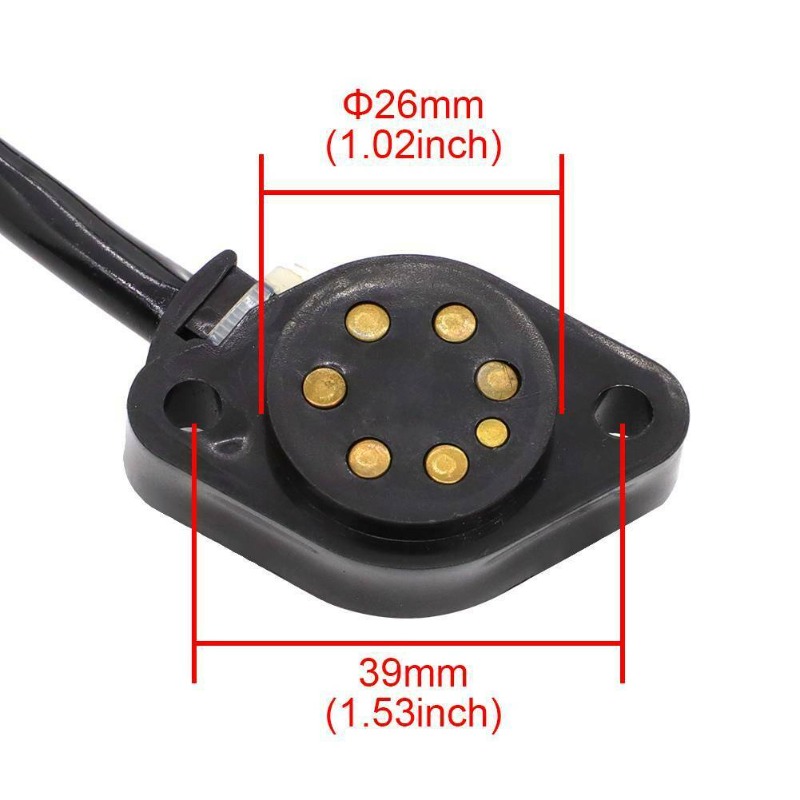

Stay away from this one ! Looks the same until you compare the contacts. Garbage !

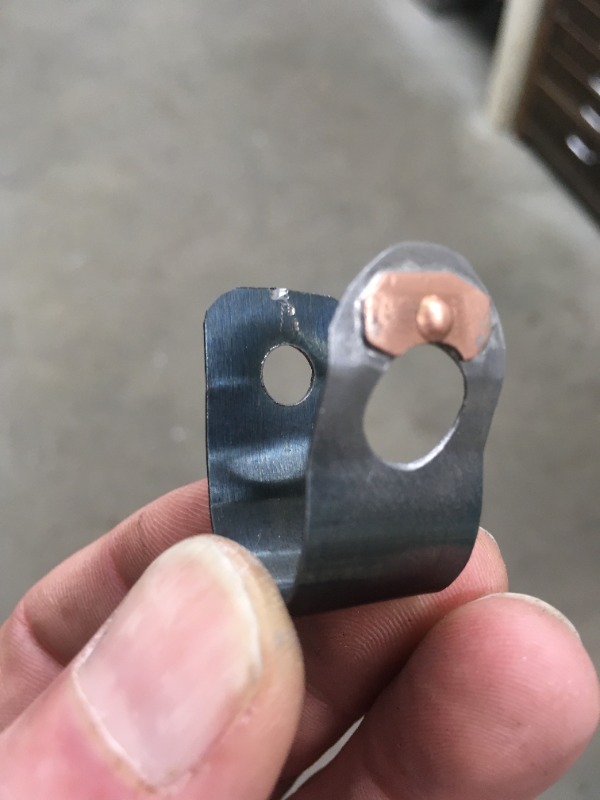

A simpler contact:

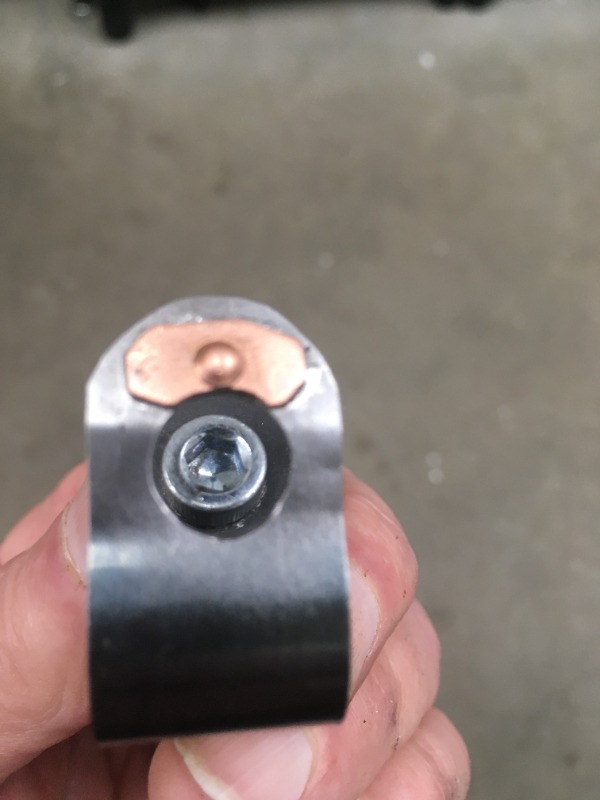

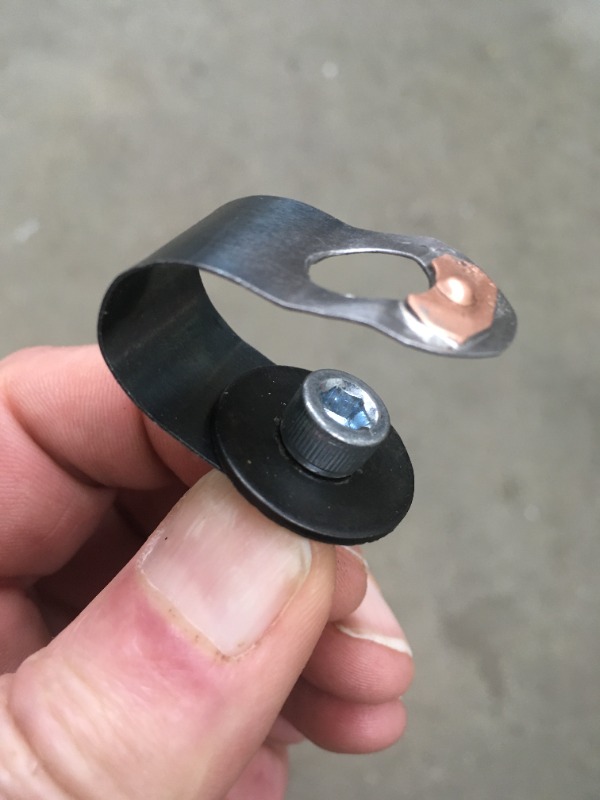

The 10mm "Pin Holder Bolt" needs to be replaced with an Allen head. Most switches have usable contacts inside. Something similar to the one in the photo can be soldered to the Steel-Banding. The large washer is necessary to reduce flexing of the spring-steel banding.

No more versions ! I promise !
1980 KZ 1300 sr# KZT30A-009997
Always High - Know Fear !
Attachments:
Last edit: 3 years 10 months ago by scotch.
The following user(s) said Thank You: zed_thirteen

Please Log in or Create an account to join the conversation.

  • scotch
  • Topic Author
  • Offline
  • Sustaining Member
  • Sustaining Member
More
3 years 10 months ago #28833 by scotch
Replied by scotch on topic Gear Indicator

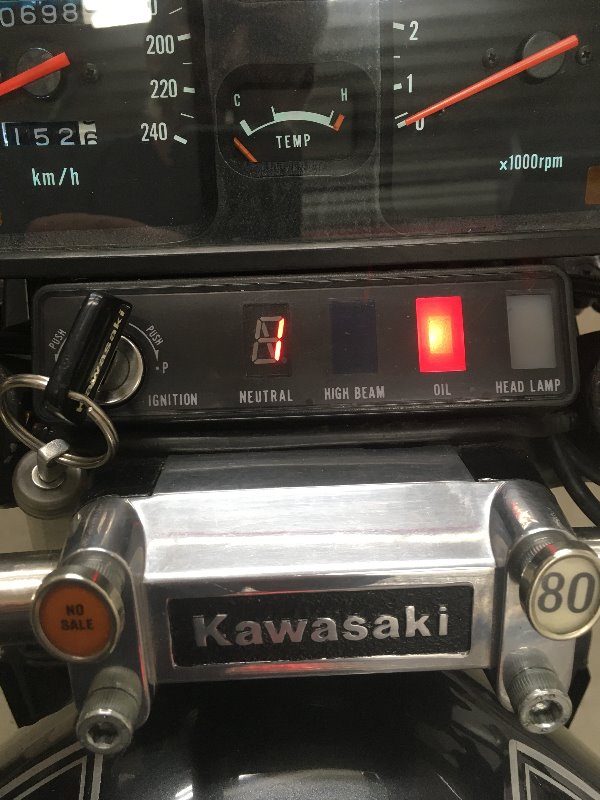

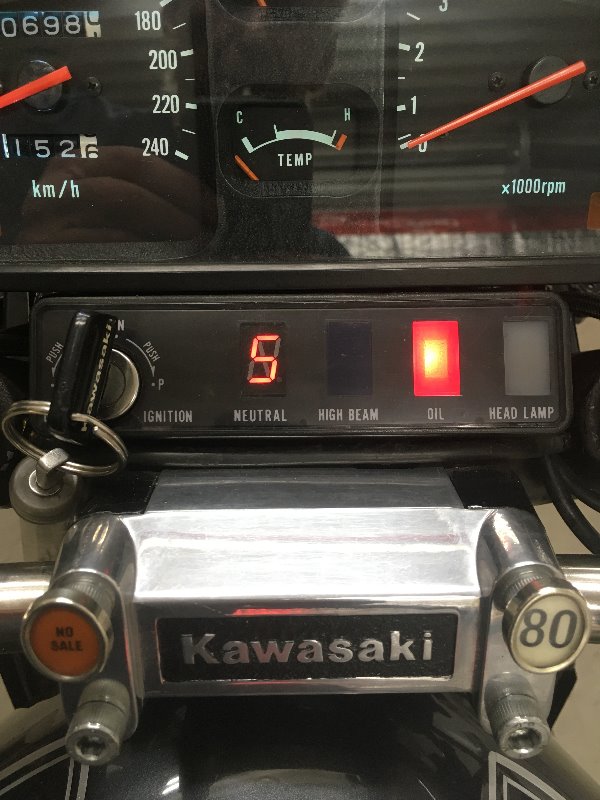

Hasn't been much else to do. -20c !




1980 KZ 1300 sr# KZT30A-009997
Always High - Know Fear !
Attachments:
The following user(s) said Thank You: Phil, zed_thirteen

Please Log in or Create an account to join the conversation.

More
3 years 10 months ago #28834 by Bucko
Replied by Bucko on topic Gear Indicator
That's very cool.
Hello from Canada's We(s)t coast.

Please Log in or Create an account to join the conversation.

More
3 years 10 months ago #28835 by Kawboy
Replied by Kawboy on topic Gear Indicator
I knew you could do it !! SWEET !! Now it looks Factory. Well done !:cheer: :cheer:

Please Log in or Create an account to join the conversation.

  • scotch
  • Topic Author
  • Offline
  • Sustaining Member
  • Sustaining Member
More
3 years 10 months ago #28836 by scotch
Replied by scotch on topic Gear Indicator

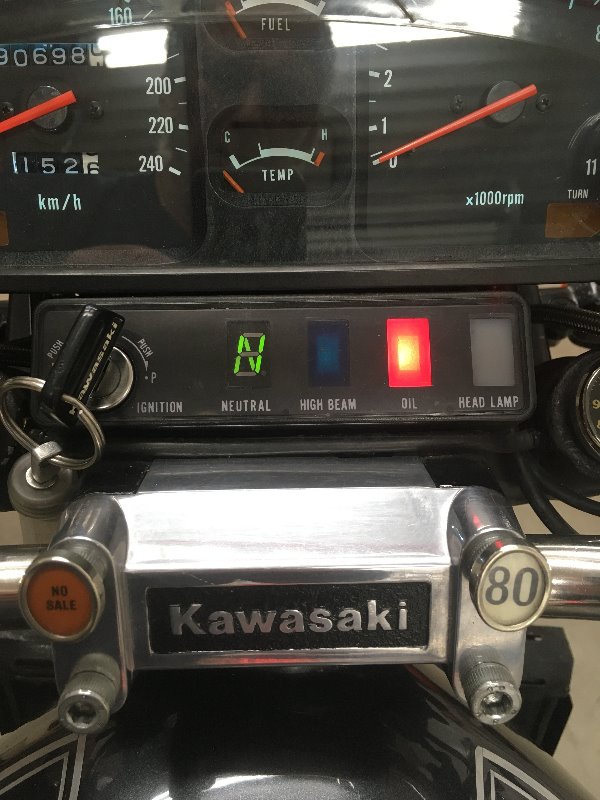

Now it looks Factory
It will when I get rid of the "Neutral". My label maker is outta tape.:angry:
And for the record: Aside from everything else; it took 3 hours just to remove the green lens with a #10 Exacto-blade !
1980 KZ 1300 sr# KZT30A-009997
Always High - Know Fear !

Please Log in or Create an account to join the conversation.

More
3 years 10 months ago #28838 by Bar
Replied by Bar on topic Gear Indicator
Looks really good !!! well done
you can sale it back to Kawasaki now ;)
