Float Height Settings............Again !

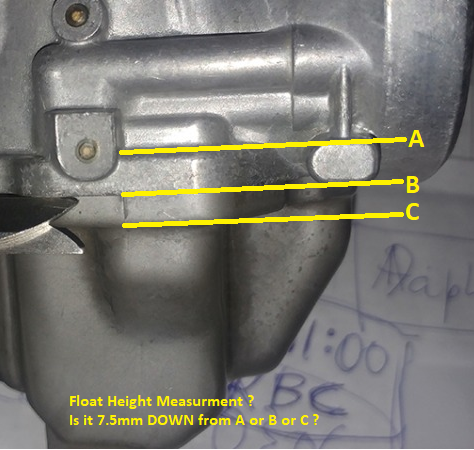

It would appear the K Workshop Manual is misleading when it describes the point float heights should be measured from ?

The tollerance is between 6.5 and 8.5mm BELOW the measuring point (so 7.5mm is a good mid way point)................but WHICH measuring point A or B or C ??

Can someone who has done this recently confirm this please as I have always measured from C but maybe wrong ?

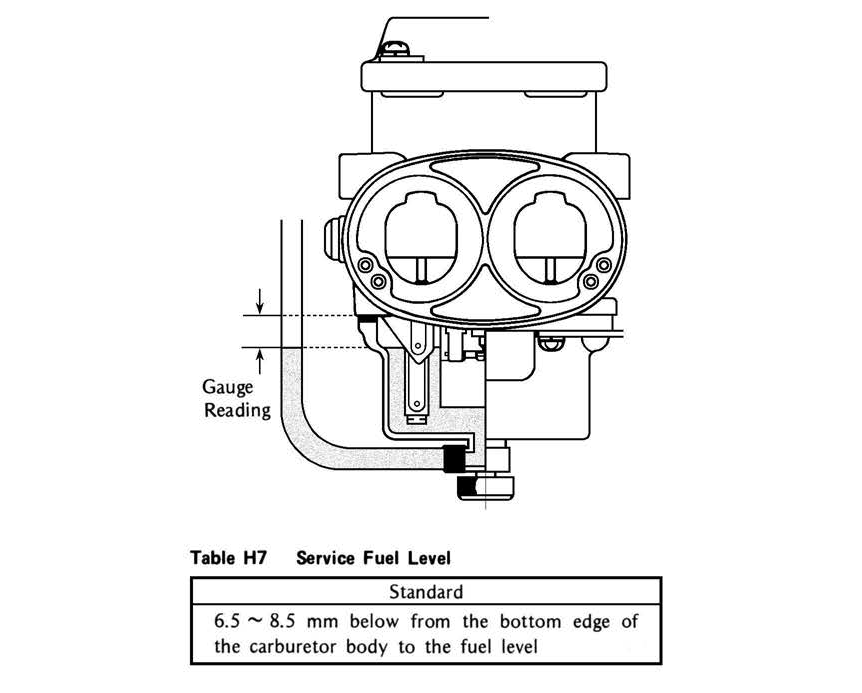

seems pretty straight forward to me. "From the bottom edge of the carburetor body" which from your diagram is "B"

Thanks Kawboy................if only it was a straight forward as that !

See a post by Scotch below, which states very differently !

Interested to hear your comments ?

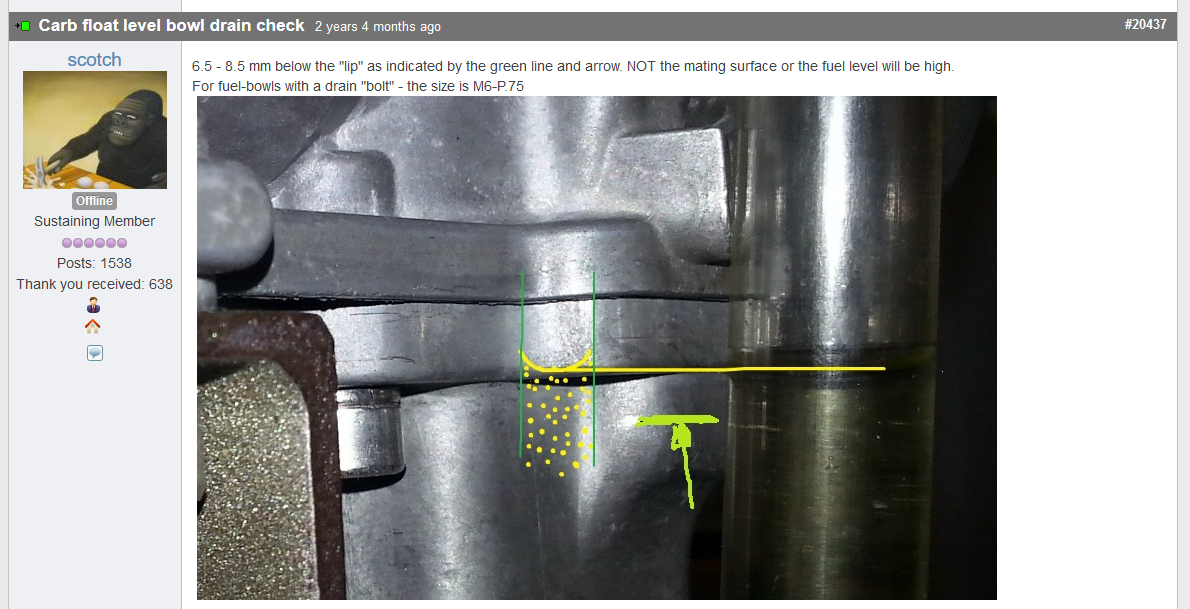

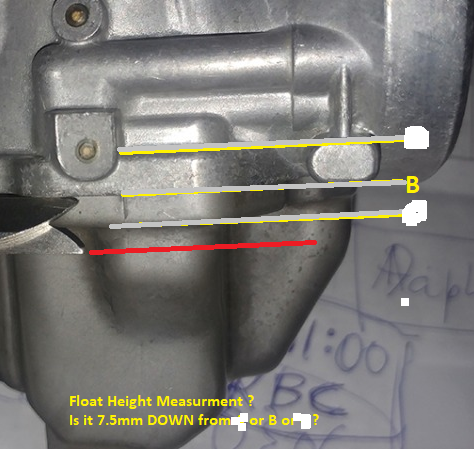

The red line indicates aprrox. 7.5mm as does the Green line in the 2nd photo

Thank you Scotch.

So what is the YELLOW Line in the 2nd photo ?

Pete F
UK

That photo was submitted by someone else some time ago. Their yellow line corresponds to the fuel level in their site tube.......which is too high.
