kza13 wrote:

homer01 wrote: Back with these old bikes and others the pillion use to give you a nice hug to hang on, good with the ladies I reckon

Soon as I read that memories from the movie "Joe Dirt 2" popped into my head, when you ride with a male pillion you use a phonebook between you, you don't want male junk anywhere near you :-)


That is what the sidecar is for Pete!!! :lol:
1983 Z1300 A5 plus Sidecar.

Please Log in or Create an account to join the conversation.

A1 Grab Rail ?? 3 years 10 months ago #10841

  • LareNurminen
  • LareNurminen's Avatar
  • Offline
  • Sustaining Member
  • Sustaining Member
  • Posts: 247
  • Thank you received: 118
Hi,

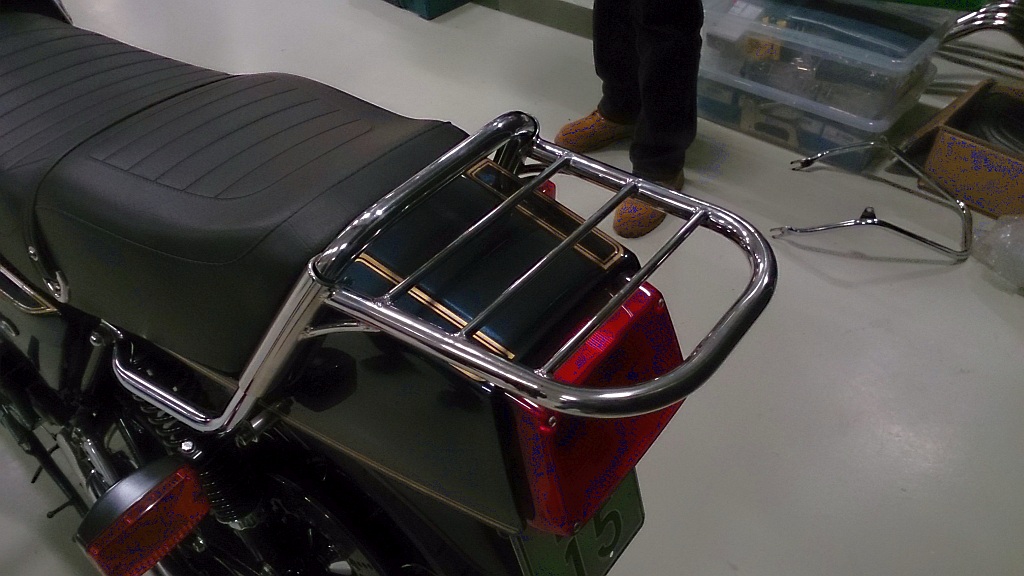

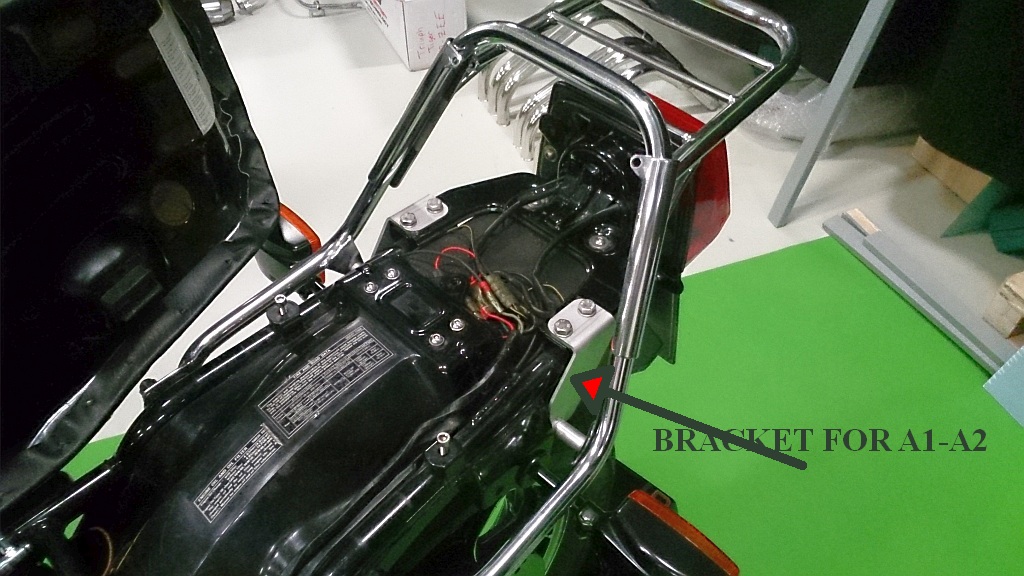

Here are some pictures of the new stainless grab rail for the 1300s, INCLUDING A1 and A2. The grab rail will fit all models, for fitting onto A1-A2 you will need to buy the additional fixing supports shown on the picture attached.
Another feature that can be added is the slide-on rack for your pack. The model shown is a prototype, the final version will look a bit nicer and have an integrated locking latch. (the prototype is fixed with two screws)

We start producing the grab rails next week and will list them on our website asap
Check www.kawasaki1300parts.com after mid-January.

Regards from -25 C (last week) Finland

Lare


Attachments:

Please Log in or Create an account to join the conversation.

A1 Grab Rail ?? 3 years 10 months ago #10845

  • kza13
  • kza13's Avatar Topic Author
  • Offline
  • Platinum Sixer
  • Platinum Sixer
  • Posts: 671
  • Thank you received: 97
Wow !!!, NICE looking, i'll be checking the store, thanks mate
after tuesday even the calendar goes WTF
1979 KAWASAKI Z1300 A1 WITH A DJP SIDECAR
Frame No: KZT3OA003911
Engine No: KZT3OAE004153
Location: Queensland Australia

Please Log in or Create an account to join the conversation.

A1 Grab Rail ?? 3 years 9 months ago #11119

  • scotch
  • scotch's Avatar
  • Offline
  • Sustaining Member
  • Sustaining Member
  • Posts: 1292
  • Thank you received: 528

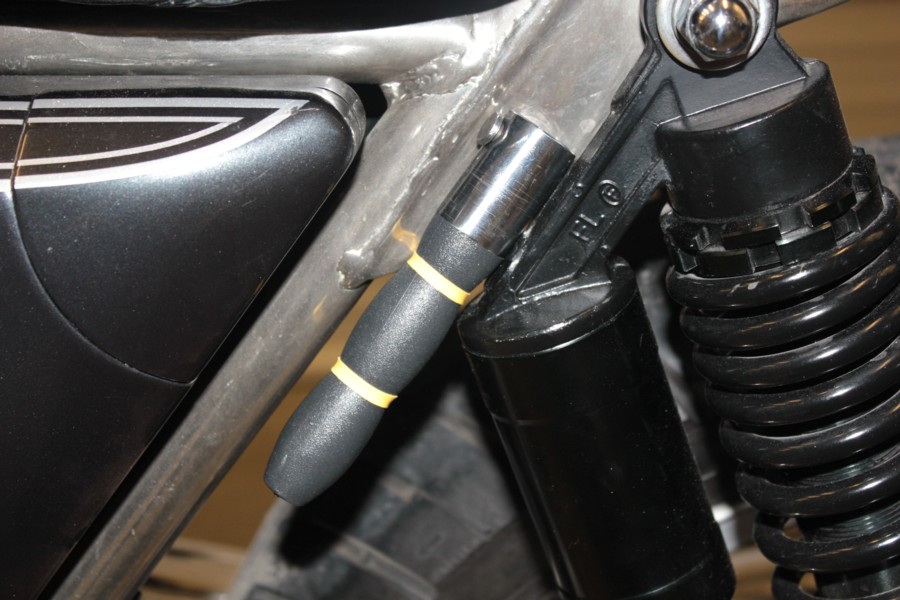

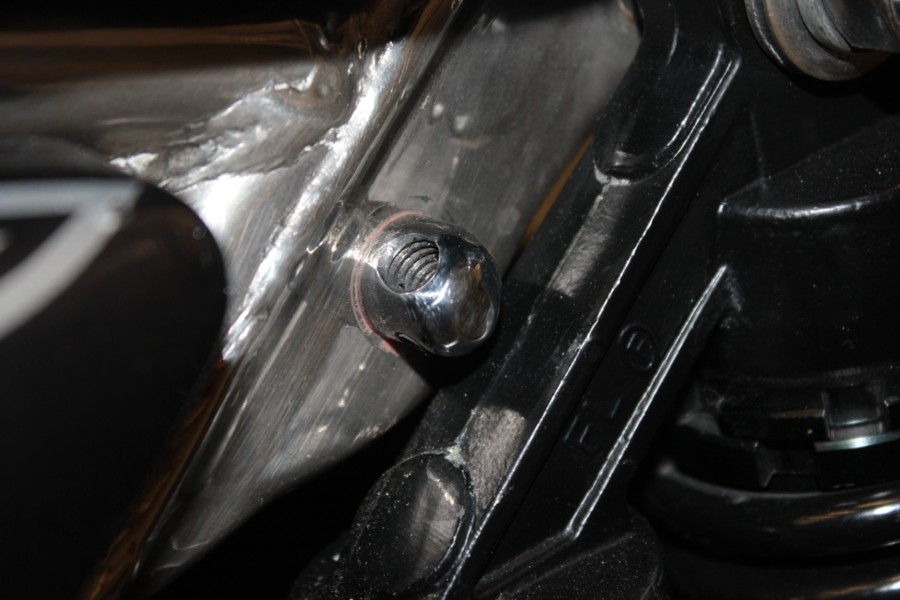

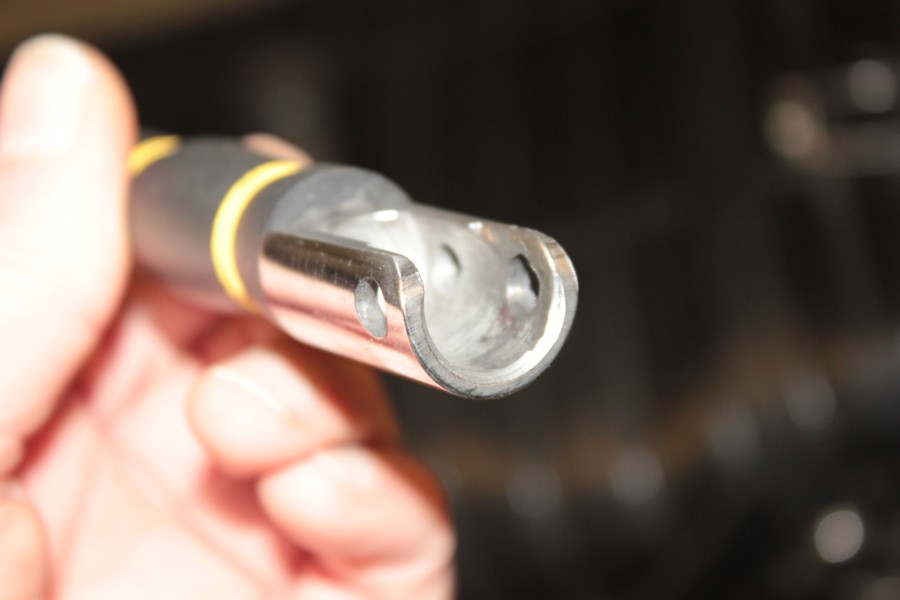

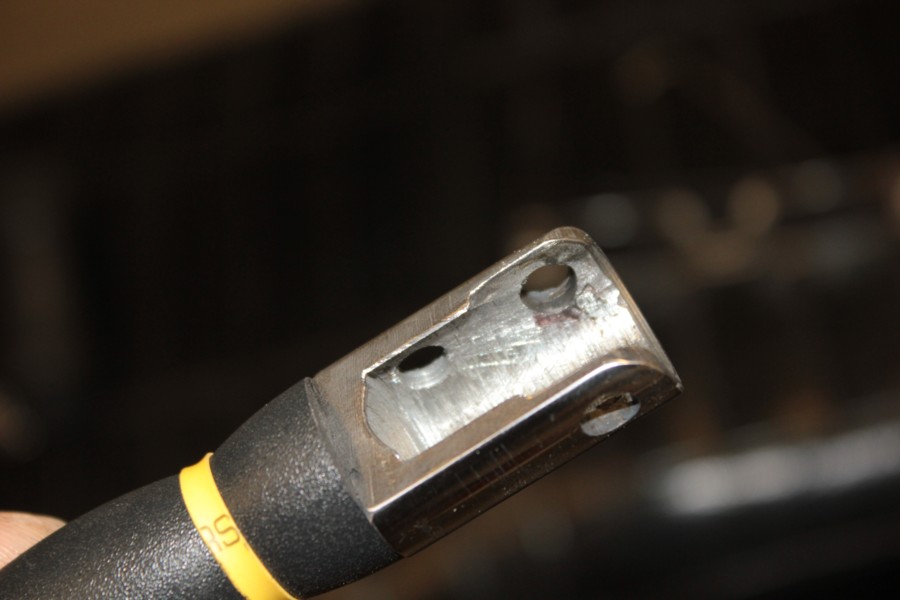

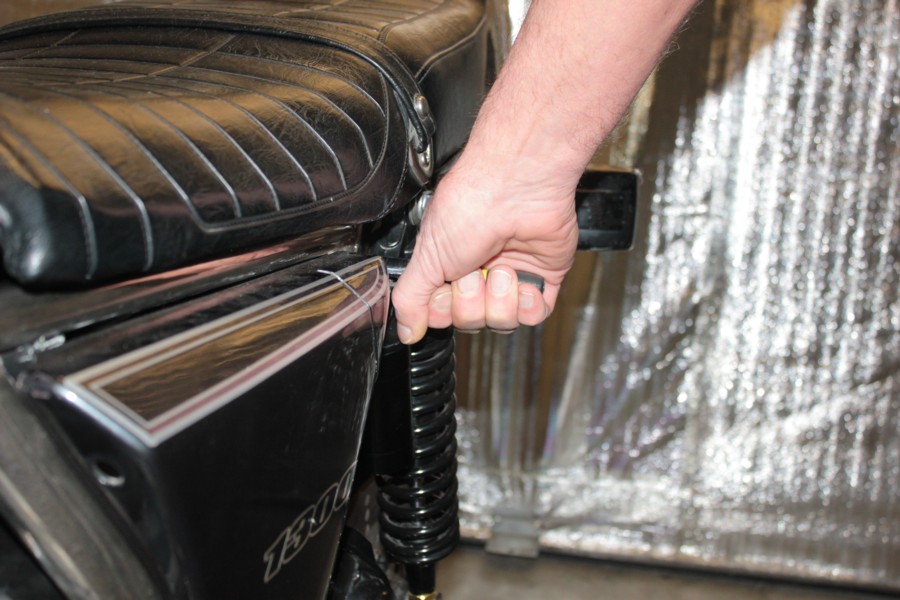

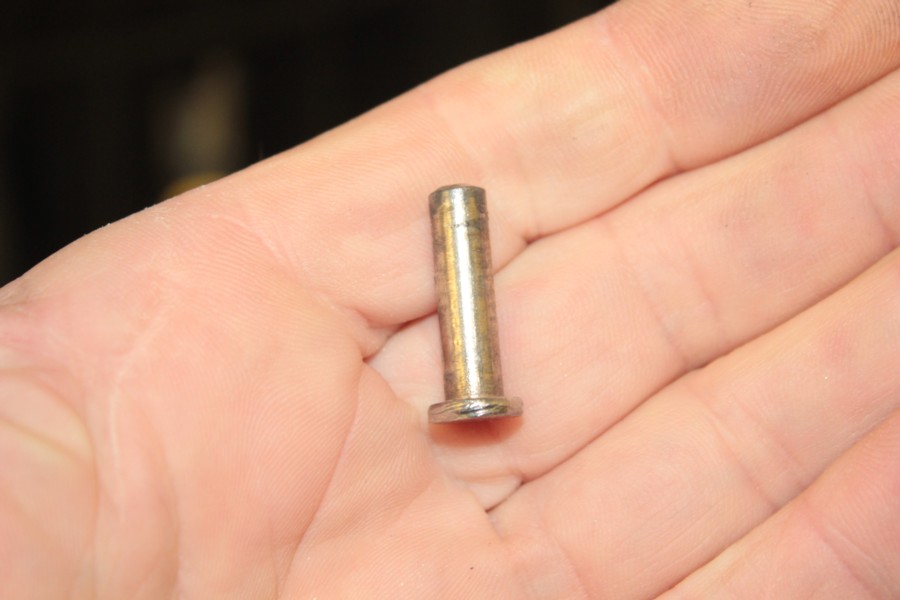

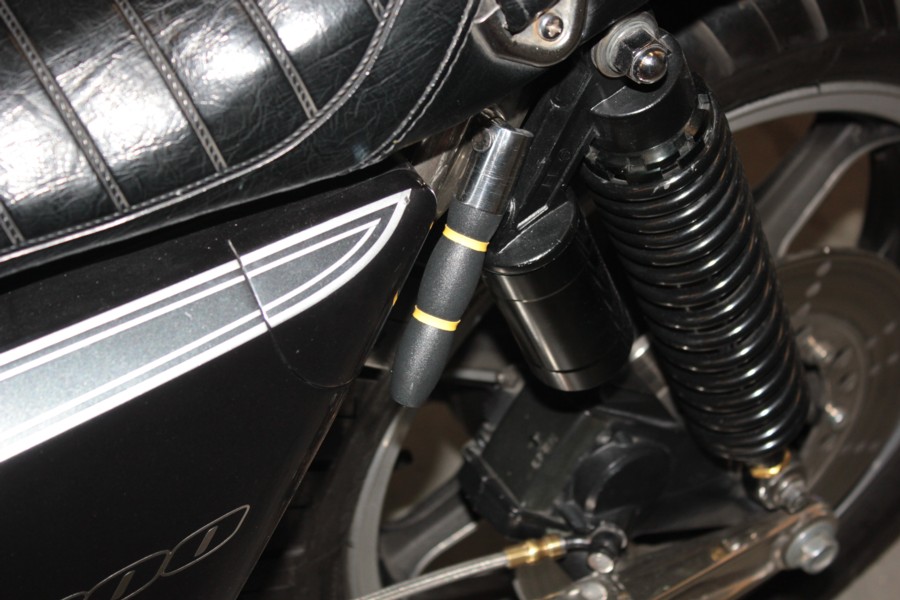

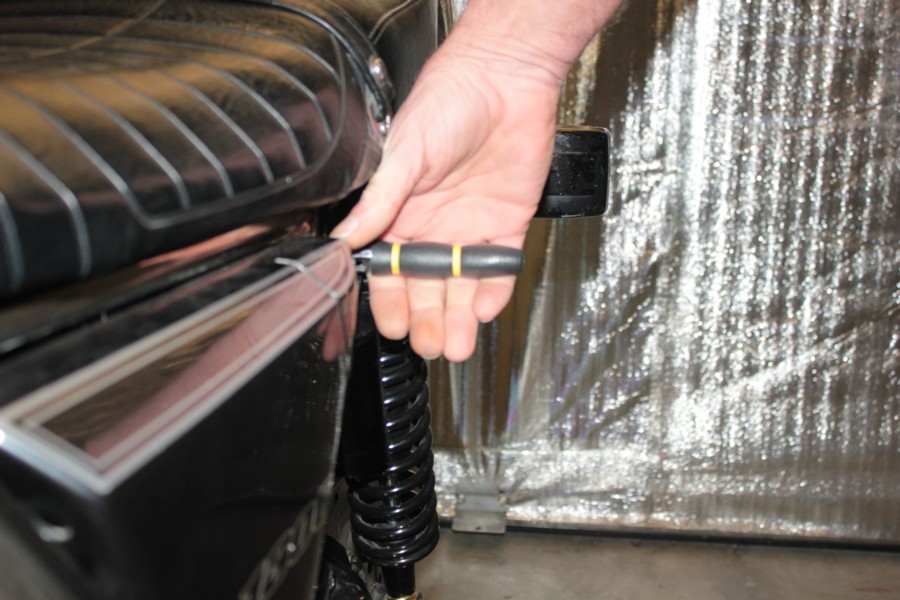

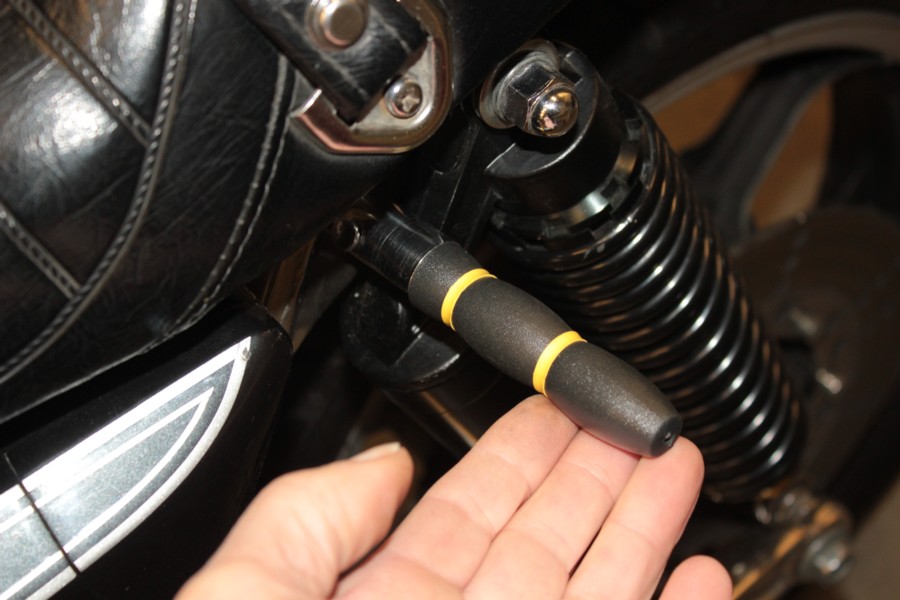

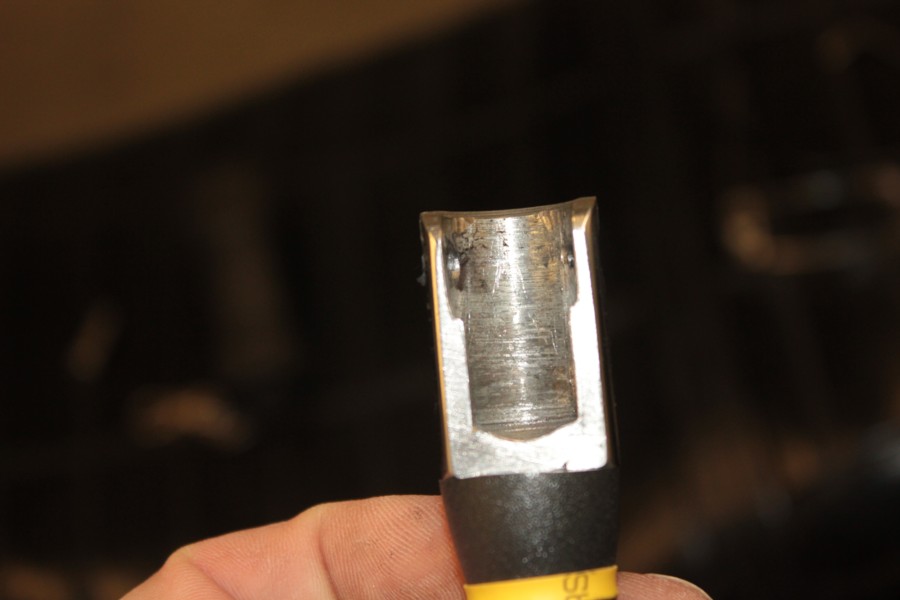

All of this talk about rails and grab-things got me to thinking. This was the result. The stud for the handle was originally designed to have a bolt as a pivot but I didn't care for the bolt-head and it's appearance so it was changed to a steel pin with a low profile head. Not pictured is a small Allen-screw on the bottom of the handle stud, used to retain the pin. The handle was a spindle adapter used for attaching a wire wheel or stone, etc to a motor armature. The rubber grip is from one of those household mops with a sponge-squeeze lever in the mop handle. It was the perfect diameter for threading onto the threads of the former spindle adapter. I had intended on using a spring loaded small ball-bearing to catch detents in order to keep the handle in both the up and closed position but decided it wasn't required. I prefer the handle to close on it's own with gravity and it stays down without any form of latching.



















1980 KZ 1300 sr# KZT30A-009997
Always High - Know Fear !

Please Log in or Create an account to join the conversation.

Last edit: by scotch.

A1 Grab Rail ?? 3 years 9 months ago #11120

  • rickster
  • rickster's Avatar
  • Offline
  • Junior Sixer
  • Junior Sixer
  • Posts: 27
  • Thank you received: 5
Like that nice one B)
The following user(s) said Thank You: scotch

Please Log in or Create an account to join the conversation.

A1 Grab Rail ?? 3 years 9 months ago #11166

  • crash
  • crash's Avatar
  • Offline
  • Junior Sixer
  • Junior Sixer
  • Posts: 24
  • Thank you received: 1

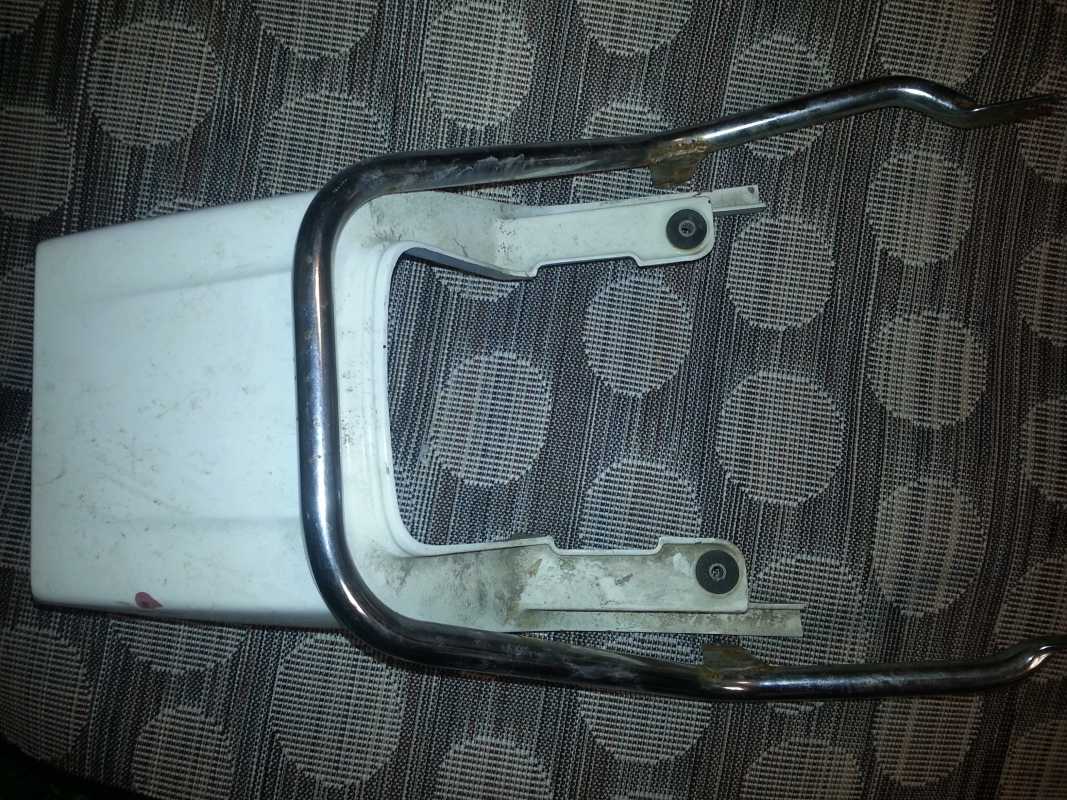

I have a grab bar
Attachments:

Please Log in or Create an account to join the conversation.

Last edit: by crash. Reason: photo
