TOPIC: Aftermarket piston rings

Aftermarket piston rings 11 months 2 weeks ago #21717

  • StanG
  • StanG's Avatar Topic Author
  • Offline
  • Platinum Sixer
  • Platinum Sixer
  • Posts: 1902
  • Thank you received: 223
Just checked on the cruizingimage rings again. You already have them, so please confirm. They are described on the packaging as 'Top ring 1R', 'Second ring 2R'.
Yet both rings have the same 'R' stamped on them, and their profiles are identical. They look absolutely identical to me, shape, color, and markings. Except - one in each set has a red dye on it's's side. But that's just a permanent marker or something similar. Nothing about it in the description. I'd imagine the red would be used to make it easier to spot the right one for top and bottom, but there is no difference between these rings!

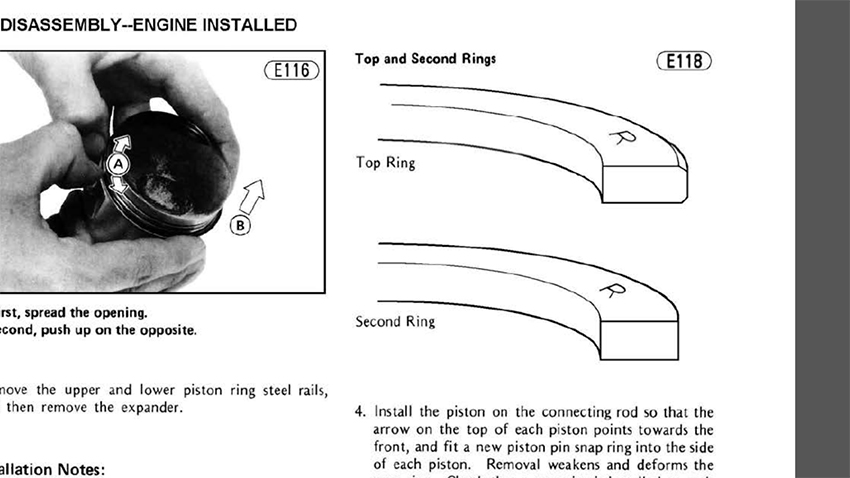

Checking the service manual, top ring should have a different profile - like in the photo below. The cruizingimage rings are simply rectangular. I am wondering if they made a mistake packing those I received or is it how they sell them?... In such case, it wouldn't be good. Rings are specified to go in the right site up, not randomly, and the right profile is there for a reason. I think we are in a pickle with this, and I am not feeling 100% confident with them, unless someone would confirm my observations back up by many miles of happy riding - without excessive oil loss or other side effects!

1982 Kawasaki KZ1300 A4
1981 Kawasaki KZ1300 A3
assembling engine, chassis & electrical from 79 - 89 parts
Attachments:

Please Log in or Create an account to join the conversation.

Last edit: by StanG.

Aftermarket piston rings 11 months 2 weeks ago #21721

  • McBoney
  • McBoney's Avatar
  • Offline
  • Golden Sixer
  • Golden Sixer
  • Posts: 211
  • Thank you received: 36

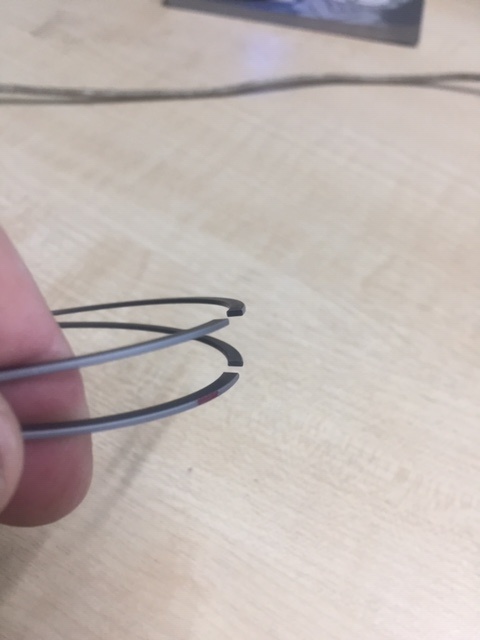

My Cruzinimage rings are exactly as you describe them, Identical except for the red mark on one of them. I also cannot see a bevelled edge to one of them and both have an R on them. Not sure which is top, but as they are indentical, I guess that doesn't matter (so why one with a red mark???)
