Kz1300 Left handlebar switch cold solder joints

  • rdbhere2
  • rdbhere2's Avatar Topic Author
  • Offline
  • Elite Member
  • Elite Member
  • Posts: 171
  • Thanks: 9

Kz1300 Left handlebar switch cold solder joints

9 years 2 months ago - 9 years 2 months ago
#9709
I'm pretty sure the orange wire is soldered in the front middle and the blue/white is soldered in 5he back middle from looking at the wiring diagram. Anyone know for sure?

Attachments:

Last edit: 9 years 2 months ago by rdbhere2.

Please Log in or Create an account to join the conversation.

  • AERIAL0
  • AERIAL0's Avatar
  • Visitor
  • Visitor

Re: Kz1300 Left handlebar switch cold solder joints

9 years 2 months ago
#9716
Hi. Shall open my switch up tomorrow and take some photo's and post. My model Z1300 A3 UK spec.

Please Log in or Create an account to join the conversation.

  • rdbhere2
  • rdbhere2's Avatar Topic Author
  • Offline
  • Elite Member
  • Elite Member
  • Posts: 171
  • Thanks: 9

Re: Kz1300 Left handlebar switch cold solder joints

9 years 2 months ago - 9 years 2 months ago
#9717
That would be great. The A3 US and A3 UK schematic looks the same.

Attachments:

Last edit: 9 years 2 months ago by rdbhere2.

Please Log in or Create an account to join the conversation.

  • kza13
  • kza13's Avatar
  • Offline
  • Platinum Member
  • Platinum Member
  • Posts: 671
  • Thanks: 97

Re: Kz1300 Left handlebar switch cold solder joints

9 years 2 months ago - 9 years 2 months ago
#9718

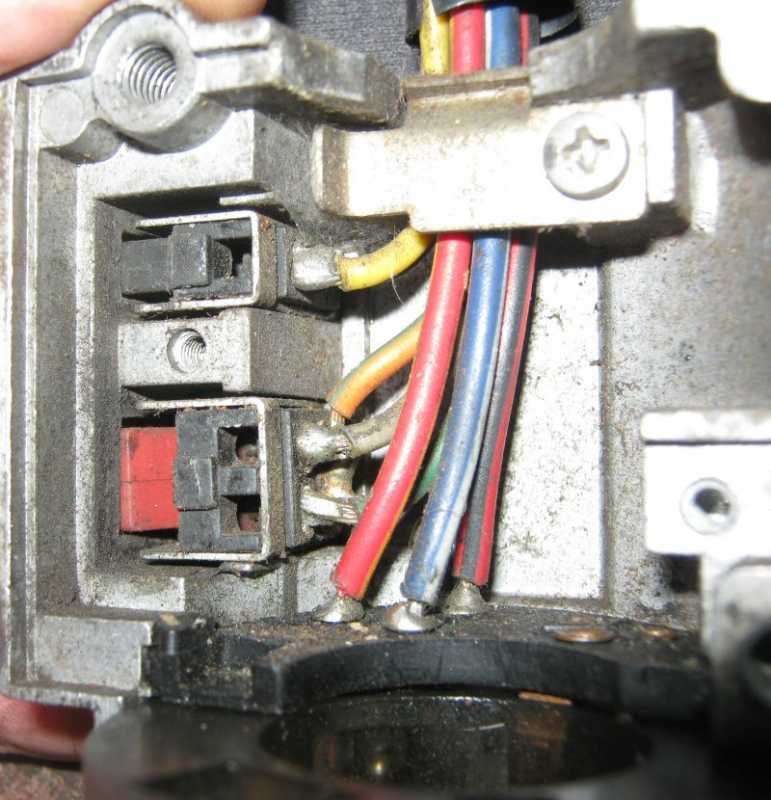

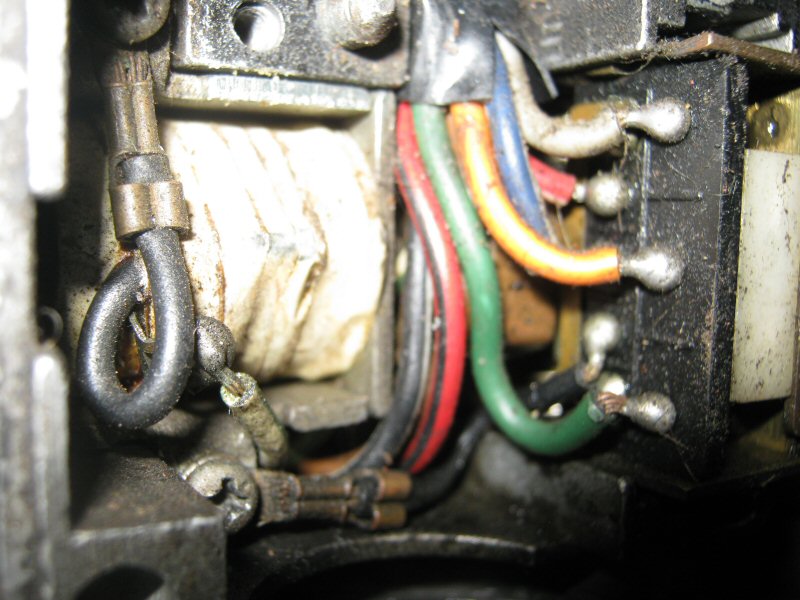

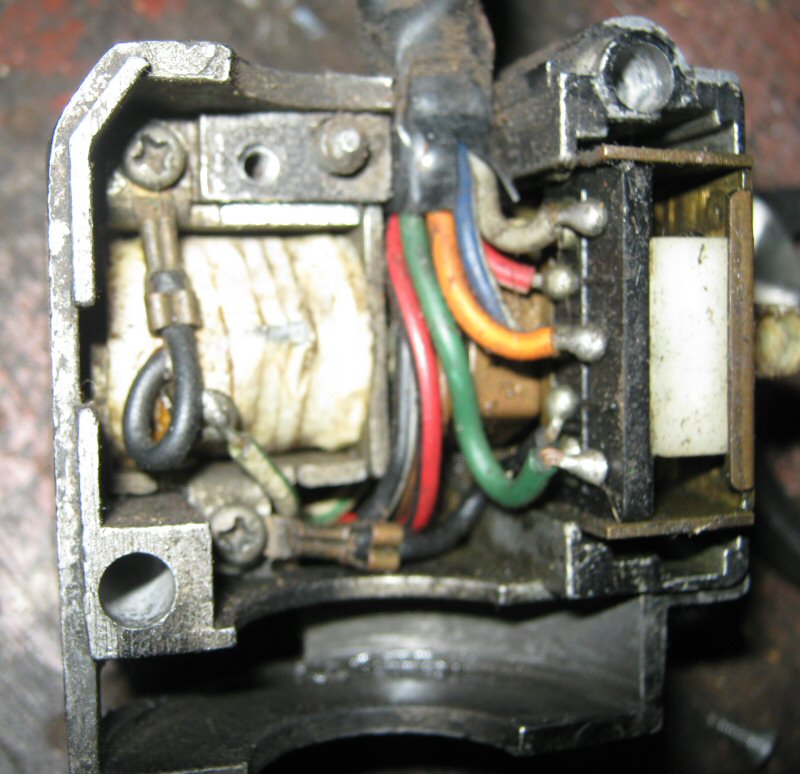

This is a spare of mine, bit old and dirty ... hope it helps, left hand, high beam switch, blinkers etc






after tuesday even the calendar goes WTF
1979 KAWASAKI Z1300 A1 WITH A DJP SIDECAR
Frame No: KZT3OA003911
Engine No: KZT3OAE004153
Location: Queensland Australia

Attachments:

Last edit: 9 years 2 months ago by kza13.
The following user(s) said Thank You: rdbhere2

Please Log in or Create an account to join the conversation.

  • rdbhere2
  • rdbhere2's Avatar Topic Author
  • Offline
  • Elite Member
  • Elite Member
  • Posts: 171
  • Thanks: 9

Re: Kz1300 Left handlebar switch cold solder joints

9 years 2 months ago
#9720
Great photos man. I had to clean the soldering points and resolder my orange wire, blue/white and white/red wires. Fortunately only three wires pulled loose in the switch housing. Thanks for the verification photos.
