4 years 10 months ago #25909 by CWB
spark plug to coil order was created by CWB
My bike is 1982 Kawasaki KZ 1300 A -4 .
I have been chugging away starting at the rear working to the front and in the process of removing ( interrupted several times) lost the plot which leads came off which plug and which coil outlet.

Two of the AW82-TRI coils are cracked pretty badly so will replace them . Will probably go for an aftermarket which has taken hours to read and research!

The following is the plug to coil layout that I think: BUT really need it confirmed.

Could I have advice on the correct "spark plug to coil " order. The firing order is 1 -5 -3 -6 -2- 4

Looking to the front of the bike;

Top coil RHS HT lead to cyl. 6
LHS HT lead to cyl 1
Left under coil. RHS HT lead to cyl 5
LHS HT lead to cyl 2
Right under coil RHS HT lead to cyl 4
LHS HT lead to cyl 3

Thanks
Bill

Please Log in or Create an account to join the conversation.

More
4 years 10 months ago #25910 by Kawboy
Replied by Kawboy on topic spark plug to coil order

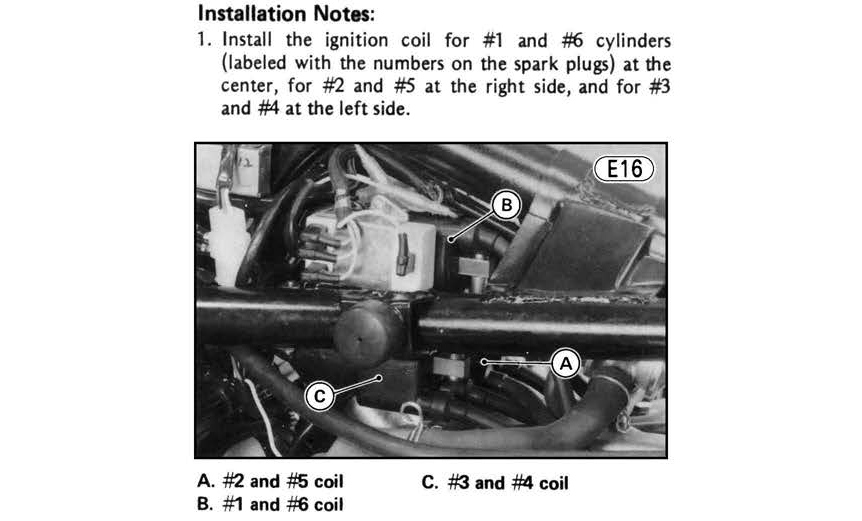

This insert comes straight from the service manual page 49.

Attachments:
