9 years 2 weeks ago #10360
by Yaegunp
1983 Z1300 A5 plus Sidecar.
Ignition Coil - Primary Winding was created by Yaegunp

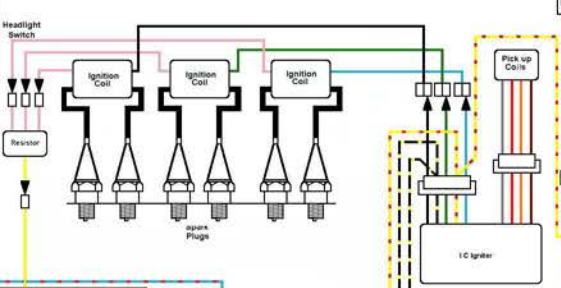

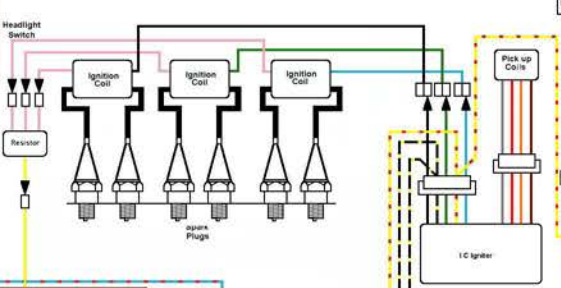

Hello, trying to figure out the correct way to connect wires to the ignition coil. I can't tell from the wiring diagram, which positive and which is negative
Do the pink wires go to positive or negative?
Do the pink wires go to positive or negative?
1983 Z1300 A5 plus Sidecar.
Please Log in or Create an account to join the conversation.
- Lucien-Harpress
- Offline
- Platinum Member
Less
More
- Posts: 456
- Thank you received: 108
9 years 2 weeks ago #10361
by Lucien-Harpress
Replied by Lucien-Harpress on topic Ignition Coil - Primary Winding
I could be wrong, but I don't think it matters. I wired mine with the pink as negative and the other colors as the respective positives. I'm fairly certain they will work either way- the only difference being which way the spark jumps on the spark plug (from electrode to ground, or vice versa)- which, incidentally, happens on one of the plugs anyway, due to the way the wasted spark coils operate.
Short answer- it doesn't matter, so long as what you do is consistent.
Short answer- it doesn't matter, so long as what you do is consistent.
The following user(s) said Thank You: Yaegunp
Please Log in or Create an account to join the conversation.
- kza13
- Offline
- Platinum Member
Less
More
- Posts: 671
- Thank you received: 97
9 years 2 weeks ago - 9 years 2 weeks ago #10365
by kza13
Replied by kza13 on topic Ignition Coil - Primary Winding
doesn't power flow from positive to negative ??, so maybe the black arrows show direction of flow, so pink wires are negative, probably wrong but that's how I look at it, and that's how mine is set up
after tuesday even the calendar goes WTF
1979 KAWASAKI Z1300 A1 WITH A DJP SIDECAR
Frame No: KZT3OA003911
Engine No: KZT3OAE004153
Location: Queensland Australia
Last edit: 9 years 2 weeks ago by kza13.
The following user(s) said Thank You: Yaegunp
Please Log in or Create an account to join the conversation.
- RickG
- Offline
- Platinum Member
Less
More
- Posts: 604
- Thank you received: 95
9 years 2 weeks ago #10366
by RickG
Live your life so that the Westbro Baptist Church will want to picket your funeral
Z1300 A1 x 2
Replied by RickG on topic Ignition Coil - Primary Winding
The arrows are Kawasaki's way of showing the connectors and the arrow is male and rectangle is female.
As Lucien has said it doesn't really matter from a perspective of making it work but the pink is to ground (earth) and the colours connect to the respective coloured wire on the harness. Best to keep it like that because it makes it easy for the next poor bugger that has to work it out to troubleshoot and he may even be you.
As Pete has said the electron flow is actually fron negative but for most purposes in a real world negative is ground and positive is Battery with the exception of some of the cars the english produced up till the early to mid sixties
As Lucien has said it doesn't really matter from a perspective of making it work but the pink is to ground (earth) and the colours connect to the respective coloured wire on the harness. Best to keep it like that because it makes it easy for the next poor bugger that has to work it out to troubleshoot and he may even be you.
As Pete has said the electron flow is actually fron negative but for most purposes in a real world negative is ground and positive is Battery with the exception of some of the cars the english produced up till the early to mid sixties
Live your life so that the Westbro Baptist Church will want to picket your funeral
Z1300 A1 x 2
The following user(s) said Thank You: Yaegunp
Please Log in or Create an account to join the conversation.
- AERIAL0
- Visitor
9 years 2 weeks ago #10378
by AERIAL0
Replied by AERIAL0 on topic Ignition Coil - Primary Winding
Plenty of info in FAQ section under coils. A must read
Please Log in or Create an account to join the conversation.
- Yaegunp
- Topic Author
- Offline
- Elite Member
Less
More
- Posts: 260
- Thank you received: 32
9 years 2 weeks ago #10391
by Yaegunp
Thanks AERIAL, I do refer to the FAQ's quite often although after having another look I see I must have forgotten to check or just plain missed it somehow
1983 Z1300 A5 plus Sidecar.
Replied by Yaegunp on topic Ignition Coil - Primary Winding
AERIAL0 wrote: Plenty of info in FAQ section under coils. A must read
Thanks AERIAL, I do refer to the FAQ's quite often although after having another look I see I must have forgotten to check or just plain missed it somehow
1983 Z1300 A5 plus Sidecar.
