Wheel Track Offset 4 years 8 months ago #24560

  • Daro
  • Daro's Avatar Topic Author
  • Offline
  • Premium Member
  • Premium Member
  • Posts: 145
  • Thank you received: 78

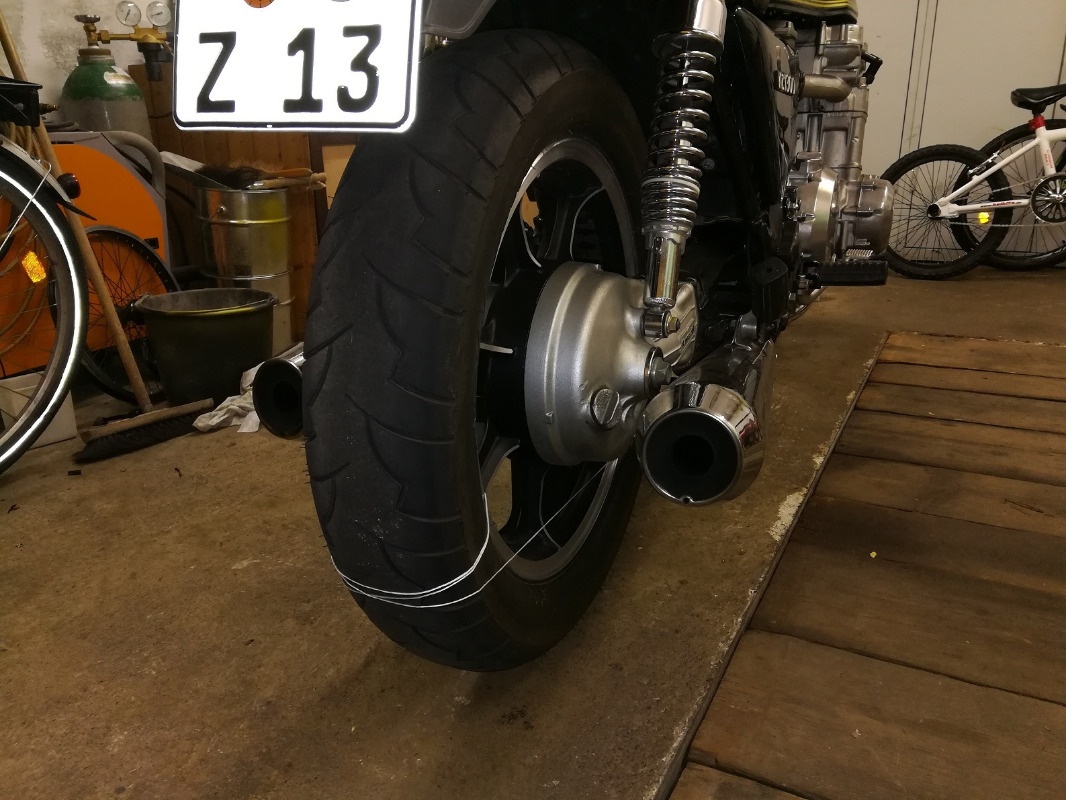

Hi I'm wondering if Z13 was meant to have a wheel track offset, or is the frame, fork bend? hmm.. and what is the purpose of such thing. I have seen on the internet various information about it, even describing how to calculate this, so I'm wondering. My kawa has a rear wheel offset to the left 5 mm.





Attachments:

Please Log in or Create an account to join the conversation.

Wheel Track Offset 4 years 8 months ago #24567

  • Bucko
  • Bucko's Avatar
  • Offline
  • Platinum Member
  • Platinum Member
  • Posts: 667
  • Thank you received: 164
Does seem a little odd although a small offset wouldn't hurt anything (I don't think). Are you sure it's not a result of a high spot on the tire on one side and a low spot on the other? You could try making the measurement at a few places around the tire. A more accurate measurement might be to use a rim with no tire on it.
Hello from Canada's We(s)t coast.
The following user(s) said Thank You: Daro

Please Log in or Create an account to join the conversation.

Wheel Track Offset 4 years 8 months ago #24569

  • Daro
  • Daro's Avatar Topic Author
  • Offline
  • Premium Member
  • Premium Member
  • Posts: 145
  • Thank you received: 78
Hi Bucko, yeah it seems a little odd, a lot of people on the internet describe this "offset" as intended for some to me unknown reason. Lots of Triumph riders got this on there bikes, but to be honest I take this as manufacture fault. It would be cool if someone could confirm, that he's bike has or not some kind of offset. When I measure the bike I have turn the wheels 180 degrees against each other to eliminate possibility of error. When I ride at speed of 50 km/h, the bike tend to kind of go to the right when I don't hold the bars, and at high speed at about 150 km/h it starts to weave. I bought the second swing arm so I'm going to try to modify it and get the bike straight. Well that's the plan.

Please Log in or Create an account to join the conversation.

Last edit: by Daro.

Wheel Track Offset 4 years 8 months ago #24570

  • strate6
  • strate6's Avatar
  • Offline
  • Platinum Member
  • Platinum Member
  • On An Adventure Before Dementia ! !
  • Posts: 1149
  • Thank you received: 356
May seem like a silly question...........but has your bike definitely got 1300 forks fitted ?

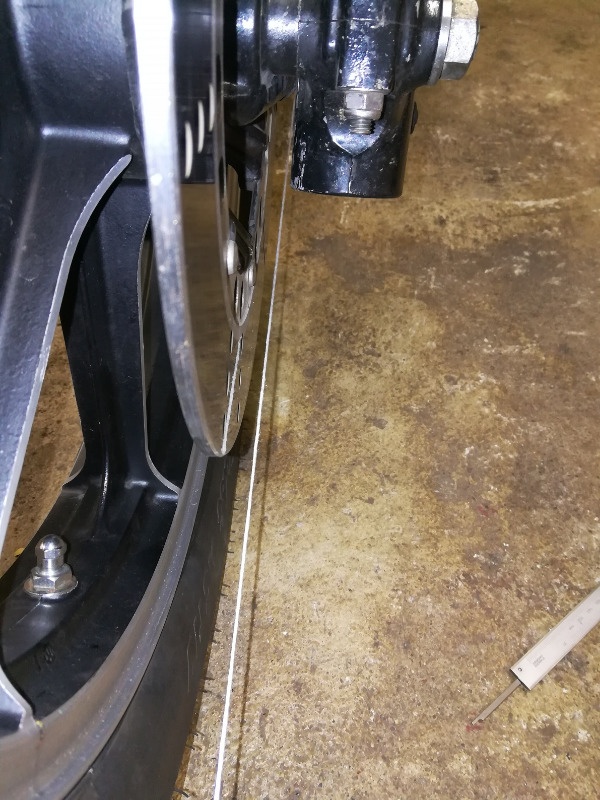

My 1979 KZ1300 has TWO axle pinch bolts at the bottom of each fork leg, but yours only seems to have ONE ?

Pete F
UK
Why Have Four When You Can Have Six ?
The following user(s) said Thank You: Daro

Please Log in or Create an account to join the conversation.

Wheel Track Offset 4 years 8 months ago #24571

  • zed_thirteen
  • zed_thirteen's Avatar
  • Offline
  • Platinum Member
  • Platinum Member
  • Posts: 528
  • Thank you received: 137

strate6 wrote: May seem like a silly question...........but has your bike definitely got 1300 forks fitted ?
My 1979 KZ1300 has TWO axle pinch bolts at the bottom of each fork leg, but yours only seems to have ONE ?

Pete F
UK

I 'm pretty sure the double pinch bolt was only on the A1 forks and then they reduced it to single for all later models
1980 KZ1300 B2 Touring/A2
1990 ZZ-R1100 C1
The following user(s) said Thank You: Daro

Please Log in or Create an account to join the conversation.

Wheel Track Offset 4 years 8 months ago #24572

  • strate6
  • strate6's Avatar
  • Offline
  • Platinum Member
  • Platinum Member
  • On An Adventure Before Dementia ! !
  • Posts: 1149
  • Thank you received: 356
Thanks for your reply.................I had a 1983 / A3 some years ago and that had Twin Bolts........but it was a UK spec model.

Pete F
UK
Why Have Four When You Can Have Six ?
