Seems my enthusiasm for the MIG tip choke Air mod. got the better of me.:blink:
So please note: I indicated I drilled the MIG tip to 1/8".
Anyone see the problem ?:S
Tube is measured O/S dia. !!!! :pinch:
The Tip should be drilled to 3/32". This is the I/S dia. of 1/8" brass tube !

It was a PM question I found this a.m. that re-enlightened me to my error but went on to ask if another diameter might work? Maybe ! Don't know. The restrictor size of 3/32" I/S dia. works well enough for myself and apparently for stan that at this time - I'm leaving mine (silicone/brass) as is.
As kawboy indicated - with the MIG tip mod. - the restrictor dia. can be what ever you drill it to. Personally, I wouldn't consider going smaller as this would likely make the choke circuit too rich. Going bigger? May defeat the purpose/advantage.

.....carry on !
1980 KZ 1300 sr# KZT30A-009997
Always High - Know Fear !
The following user(s) said Thank You: Kawboy

Please Log in or Create an account to join the conversation.

Last edit: by scotch.

Choke Air mod 2 weeks 6 days ago #23179

  • scotch
  • scotch's Avatar Topic Author
  • Offline
  • Sustaining Member
  • Sustaining Member
  • Posts: 1108
  • Thank you received: 456
Kawboy wrote: What are the chances of drilling and tapping for a main jet now that you've proven the theory that a reduction in that port is a viable option?

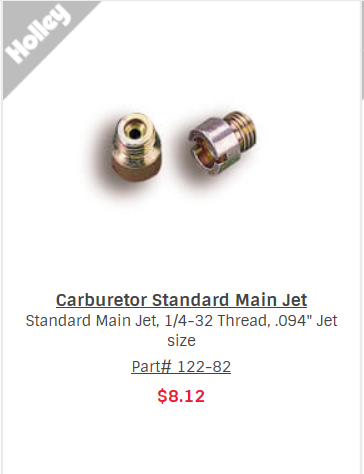

In keeping with his idea of a more "factory" appearance and preferring the flexibility of using a range of orifice sizes I did some digging and found that Holley has jets that have a 1/4"-32 thread and are available with a .094" orifice which matches the 3/32" that I've suggested.

So for you experimenters - fill your boots because they have a wide range of jet sizes to drive you nuts.
1980 KZ 1300 sr# KZT30A-009997
Always High - Know Fear !
Attachments:

Please Log in or Create an account to join the conversation.

Choke Air mod 2 weeks 6 days ago #23180

  • Kawboy
  • Kawboy's Avatar
  • Offline
  • Moderator
  • Moderator
  • Posts: 1839
  • Thank you received: 480
What scream. I ordered 3 of these this morning !!
Mikuni B42/55 size 280 jets
1980 KZ1300 B2 converting to an A2.

Please Log in or Create an account to join the conversation.

Last edit: by Kawboy.

Choke Air mod 2 weeks 6 days ago #23186

  • zed_thirteen
  • zed_thirteen's Avatar
  • Offline
  • Platinum Sixer
  • Platinum Sixer
  • Posts: 373
  • Thank you received: 85
Hi Scotch,

for the rest of the world 3/32" is 2.38mm. Would you recommend drilling to 2mm or 2.5mm?
1980 KZ1300 B2 Touring/A2
1990 ZZ-R1100

Please Log in or Create an account to join the conversation.

Choke Air mod 2 weeks 5 days ago #23189

  • scotch
  • scotch's Avatar Topic Author
  • Offline
  • Sustaining Member
  • Sustaining Member
  • Posts: 1108
  • Thank you received: 456
for the rest of the world 3/32" is 2.38mm. Would you recommend drilling to 2mm or 2.5mm?

3/32" or 2.38

No More - No less
1980 KZ 1300 sr# KZT30A-009997
Always High - Know Fear !

Please Log in or Create an account to join the conversation.

Last edit: by scotch.

Choke Air mod 6 days 1 minute ago #23296

  • Kawboy
  • Kawboy's Avatar
  • Offline
  • Moderator
  • Moderator
  • Posts: 1839
  • Thank you received: 480
This is a repeat of what I posted in "Kawboy's Restoration of a B2"

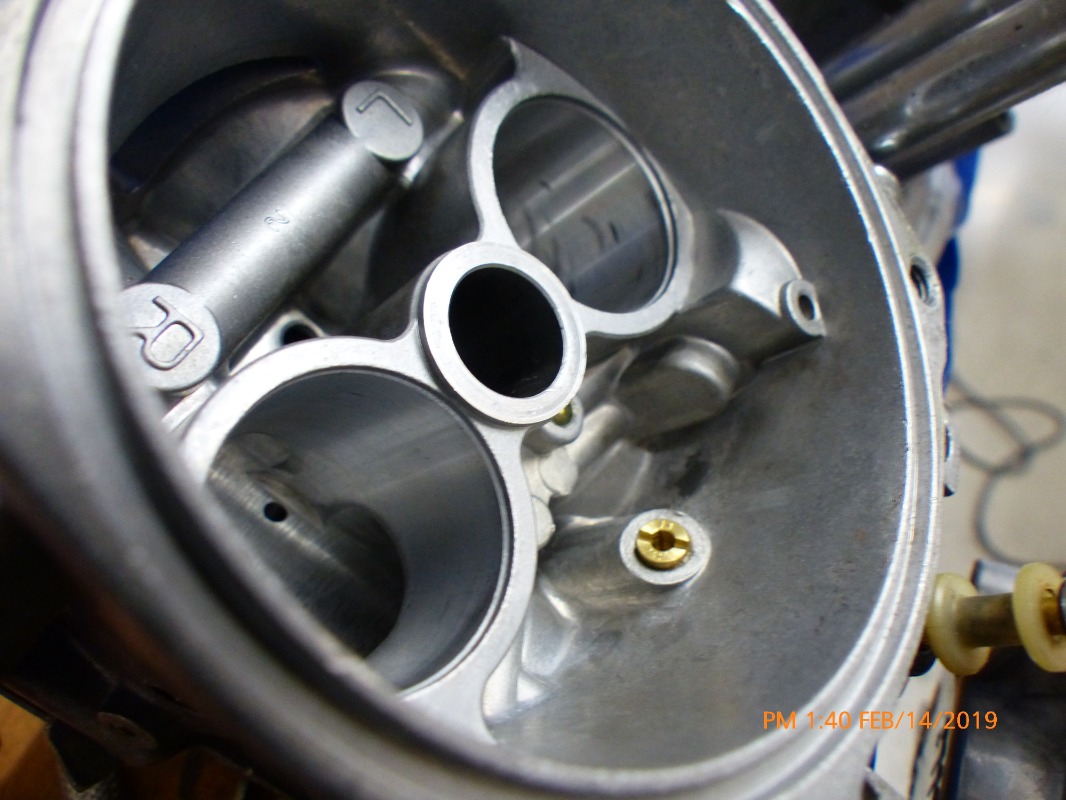

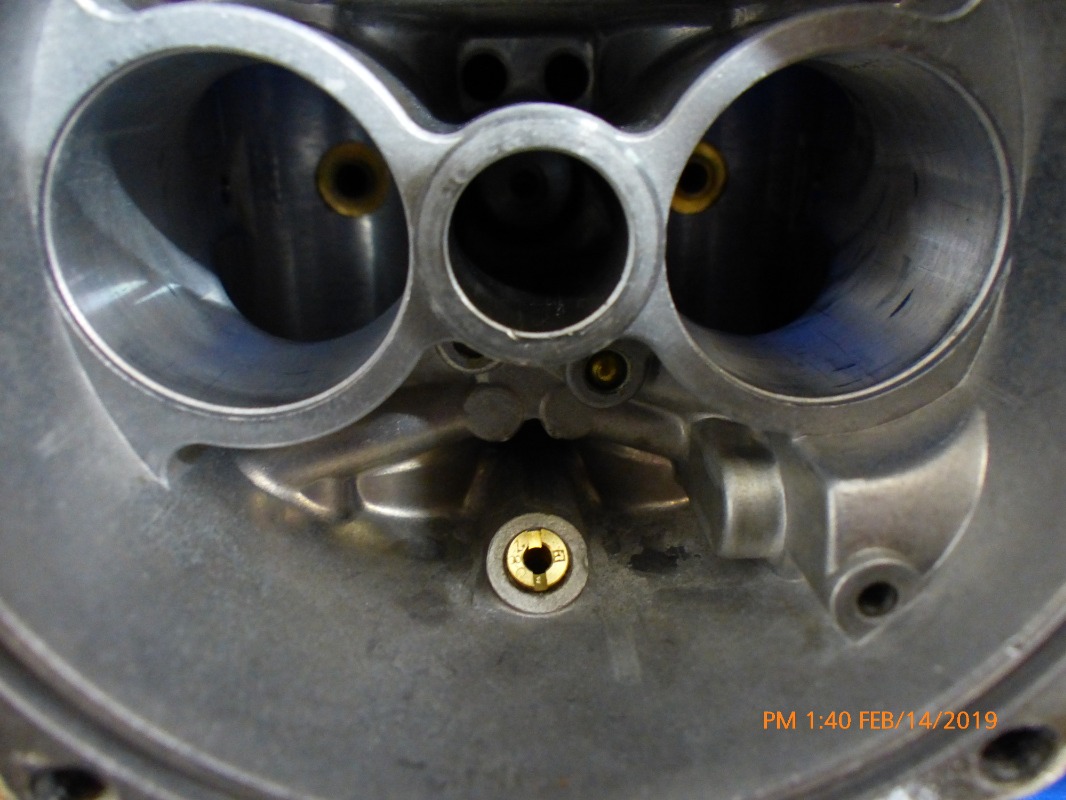

Popped the lid of of the carbs and started the mod. The thread size on the B42/55 is a 6mm x 1mm standard thread. The tap drill for that thread is a #9 which is .194" I measured the bore of the air jet in the body of the carb at .191" so there was no reason to have to run the #9 bit in the hole, just tap it out to 6mm X 1mm. Tapped it in 5 threads, cleaned the hole with a vacuum and pulled the choke plunger out to ensure no aluminum thread filings. Inserted the jet and Bob's your Uncle. So I've choked down the air to the choke circuit from .191" to .110" using the B42/55 X #280 jet.

I also like the nice clean look. If I decide down the road to change the orifice size, the B42/55's are available in #70 (which is .7 mm) to #290 (which is 2.9 mm)



1980 KZ1300 B2 converting to an A2.

Attachments:
The following user(s) said Thank You: scotch
