Main Wiring Loom

Hello all,
I am now about half way through the resto of my A4. Just put the engine back in, now starting to look like a bike again.
Went to put the main wiring loom back in and hit upon a snag, of all the photos I have taken I overlooked to take one of where the loom is routed around the head stock area :oops: I have looked in my manual but there is no clear photo of where it goes. Is there someone out there who is able to take a photo for me and upload it so I can get it right.
Thanks in advance.

Torque:

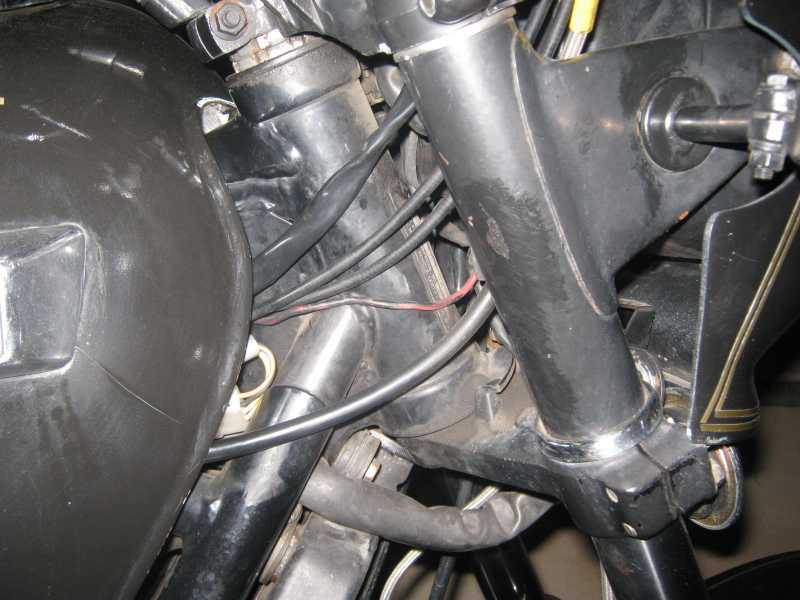

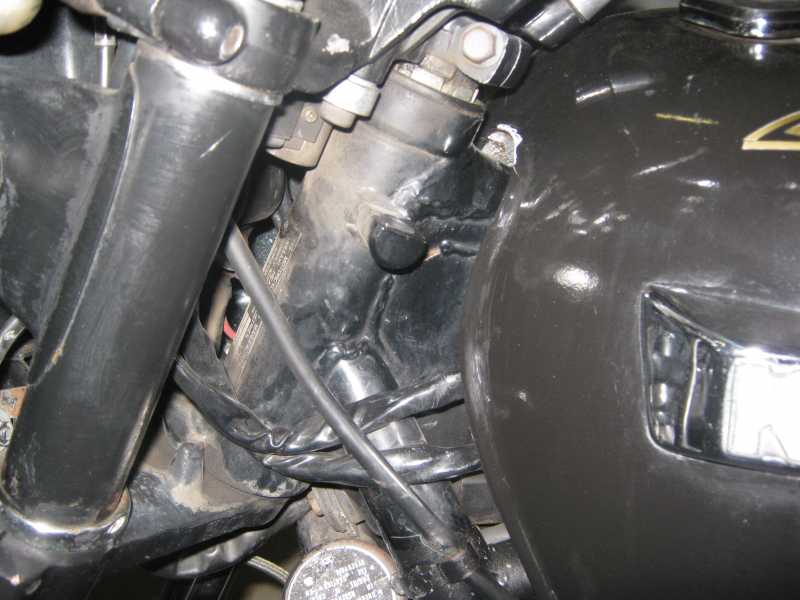

I don't have a photo to show but here is the way my unmolested A-4 harness is routed.

1: Main harness is on the LH side of the frame
2: 2nd smaller bundle is routed on the RH side of the frame
3: All LH handlebar controls on the LH side of the head-pipe
4: All RH handlebar controls on the RH side of the Head-pipe
5: Depending on the natural lay of the main harness my sub-harness's for the instrument cluster go to the headlight bucket.

Sometimes you can get lucky in looking at the factory photos in the shop manual and come up with the routing.

Hope this helps.

Regards.

Todd.

Ignore the black painted red wire, I have a broken power wire in the harness and just ran a power wire to the headlight bucket to bypass it

Awesome thank you.

is the LH and RH from the front of the bike or as you sit on the bike thanks having the same trouble

It is as you are sitting on it. Same as all cars too.
