Air Box Modification

Took a day off work today to make my new air filter system. I got a quote for CNC machining to my design but they wanted £150 per item which was too rich for me.

So, I made a jig and two templates:

Spent the best part of the day machining the aluminium with wood cutting bits in a router. I did try a 1/2 end mill but it wasn't working

And ended up with these:

The holes for the air filter pod tubes were a really tight fit. I had to press them in with a vice. So not bothered to get them TIG welded yet. Had to resort to a bit of baby oil to get the pods on - 50mm my arse!

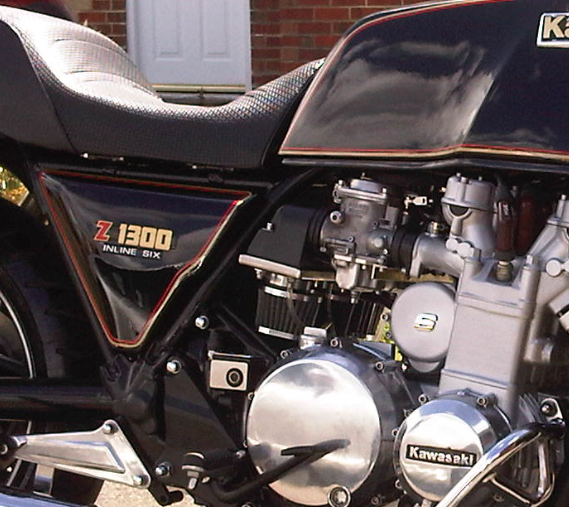

I still need to make the bottom bracket but you can still use the original side covers. Again, with a little baby oil the three carb rubber gaskets slip over nicely:

What a great way to tackle this modification. As they say "Necessity is the Mother of Invention".
