Vagaries of the different models
- tackelhappy
- Topic Author
- Offline
- Platinum Member
- Posts: 426
- Thanks: 167
Re: Vagaries of the different models
7 years 9 months ago - 7 years 9 months ago
I'll start on my end with one peculiar piece I noticed - this is to do with the front forks.

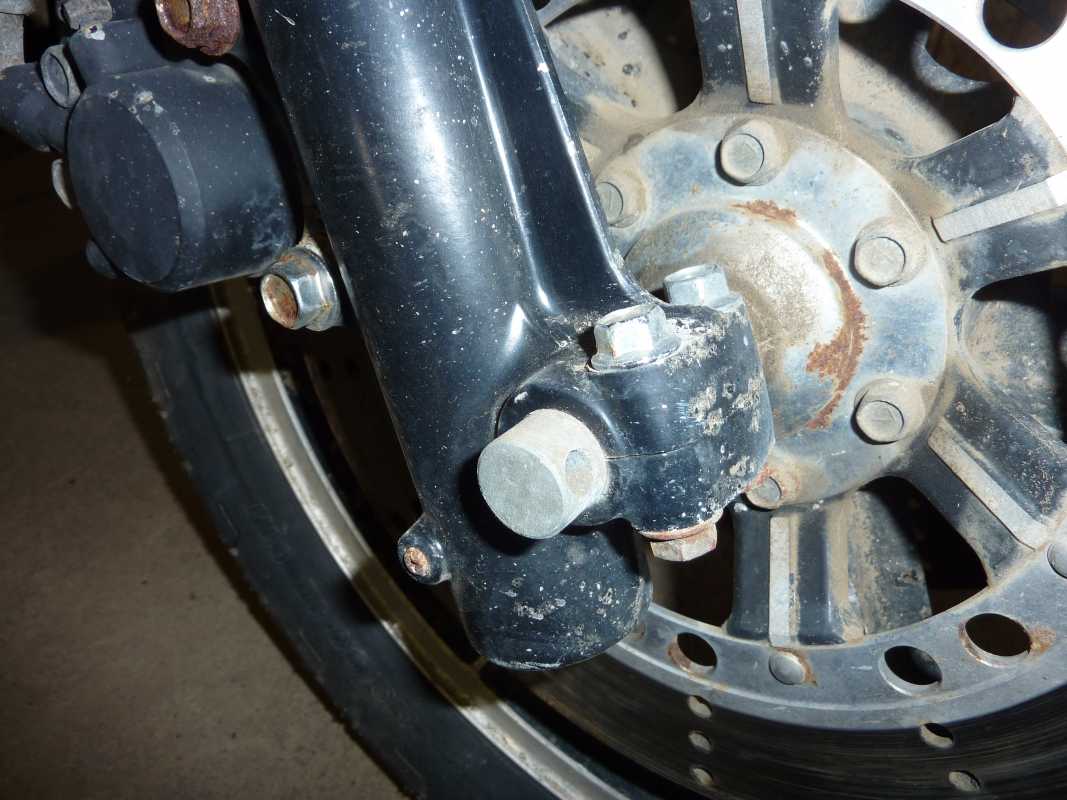

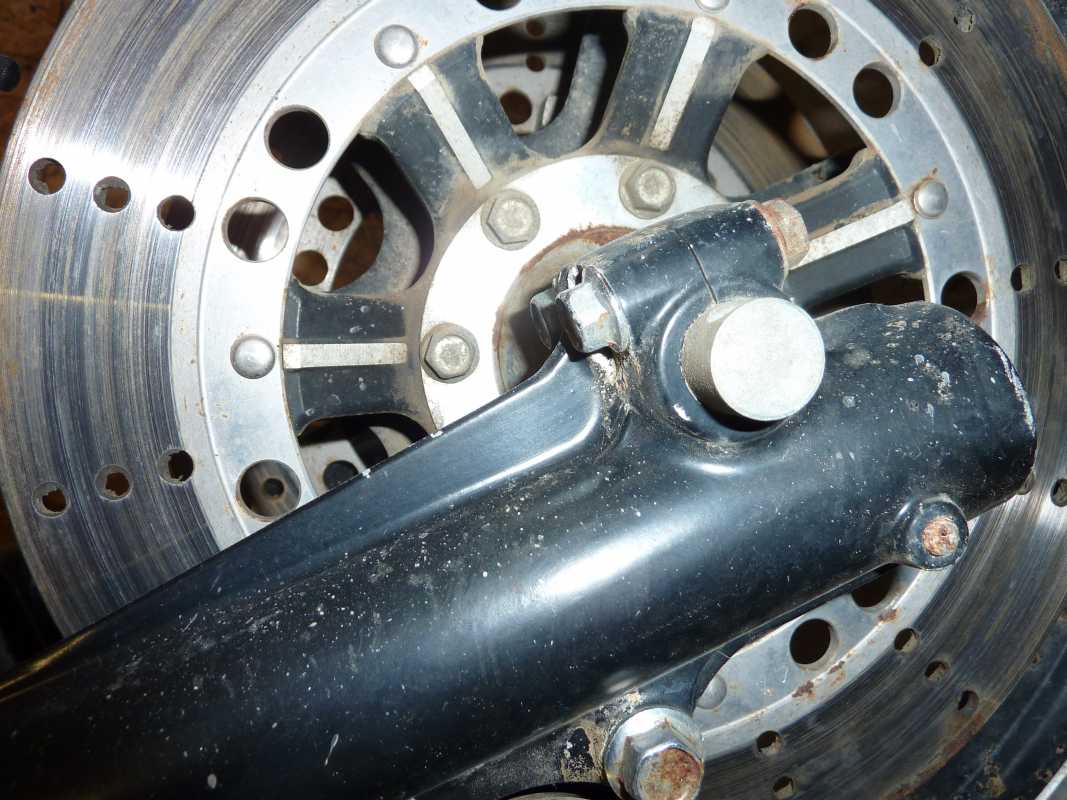

These are the lower fork legs in their original black paint from a early 1979 model. Two pinch bolts per side to hold the axle in place -per side- but even more interesting is size of the vane- strengthening beam /whatever on the leading edge of the fork.

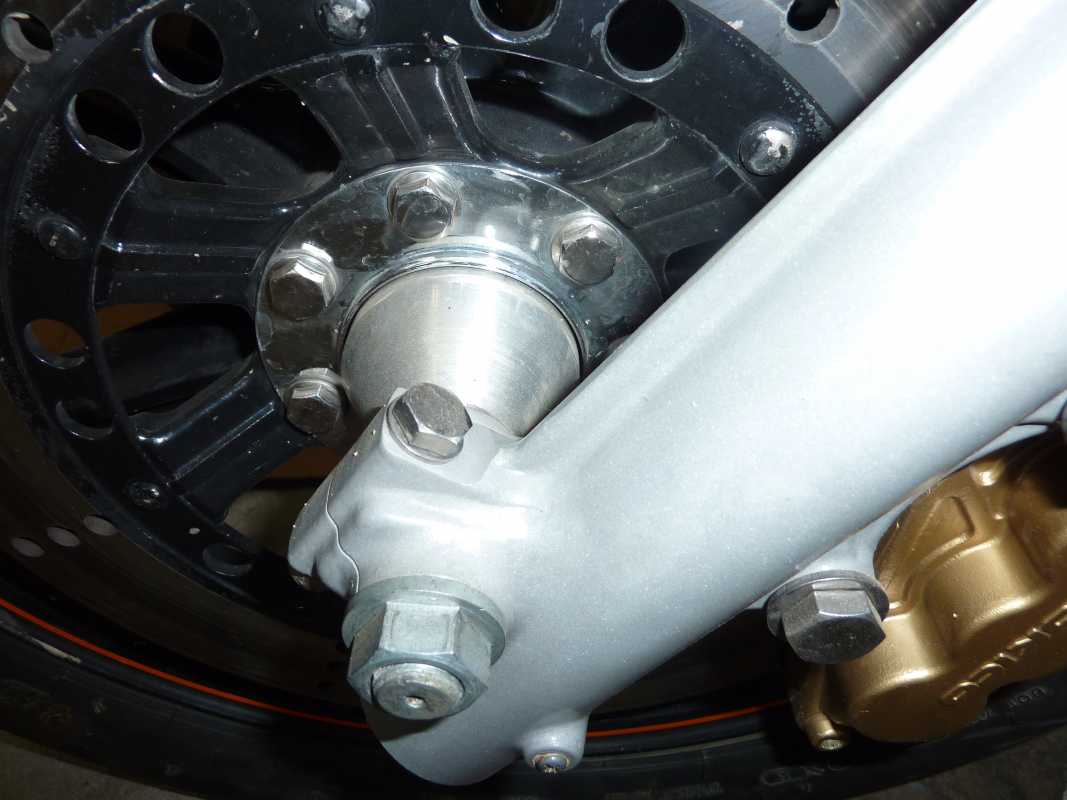

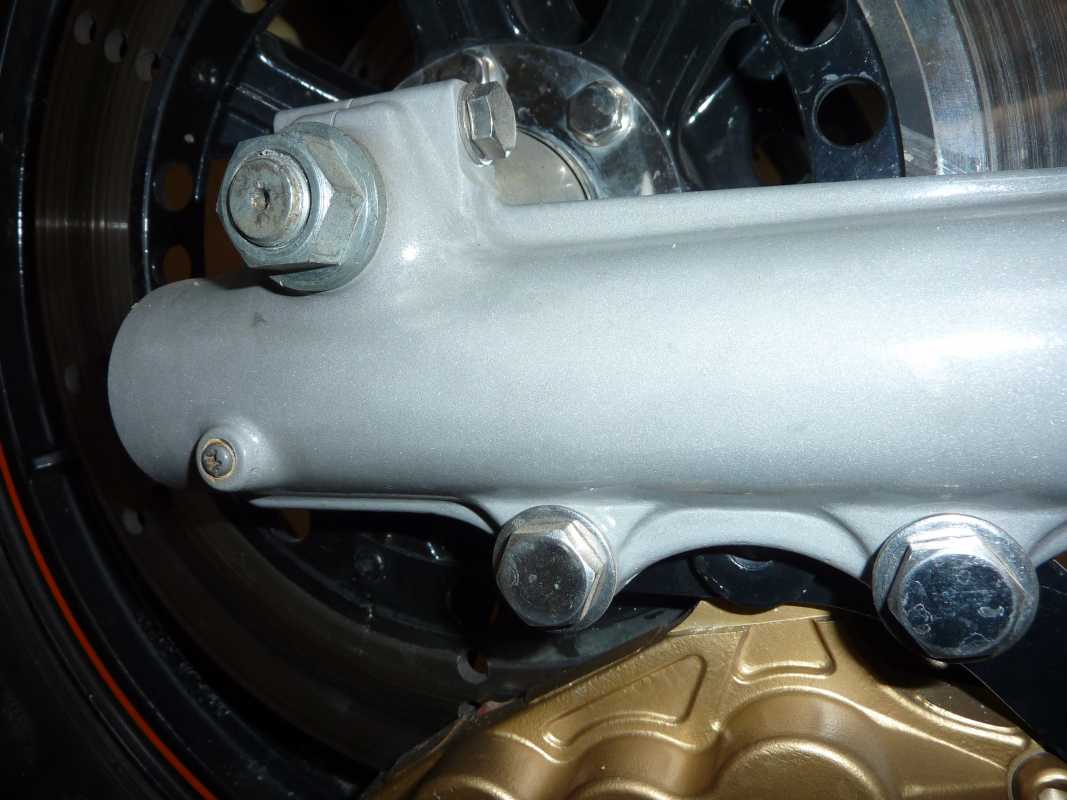

Compare that to the bead blasted to natural colour of a bike only one year newer with one pinch bolt per side and a much smaller leading edge vane/ brace .
These are the lower fork legs in their original black paint from a early 1979 model. Two pinch bolts per side to hold the axle in place -per side- but even more interesting is size of the vane- strengthening beam /whatever on the leading edge of the fork.
Compare that to the bead blasted to natural colour of a bike only one year newer with one pinch bolt per side and a much smaller leading edge vane/ brace .
" If you can't say what you think, very soon you won't be able to think !
OKANAGAN FALLS. BC ,Canada
OKANAGAN FALLS. BC ,Canada
Last edit: 7 years 9 months ago by tackelhappy. Reason: correction
The following user(s) said Thank You: Kawboy
Please Log in or Create an account to join the conversation.
- Tonto
- Offline
- Sustaining Member
- Posts: 501
- Thanks: 133
Re: Vagaries of the different models
7 years 9 months ago
Well you live and learn: my early 79 A1 has the deep vane and twin pinch bolt set up, I never new that was varied on later models.
Re the link: it was useful to me as at the time, as it was the first source I found that identiifed engine / frame No.s, respective colours etc. (as Tyler posted) Also, in the UK Zed Power are probably the biggest classic Kwak parts supplier, so I could gauge spares availability for the Z13 compared to other bikes I've restored.
I know the guys that own and run Zed Power really well, so cant see it being a problem using their link: but looking at Tyler's text I think that about covers it.
Cheers Tim
Re the link: it was useful to me as at the time, as it was the first source I found that identiifed engine / frame No.s, respective colours etc. (as Tyler posted) Also, in the UK Zed Power are probably the biggest classic Kwak parts supplier, so I could gauge spares availability for the Z13 compared to other bikes I've restored.
I know the guys that own and run Zed Power really well, so cant see it being a problem using their link: but looking at Tyler's text I think that about covers it.
Cheers Tim
"Success consists of going from failure to failure without the loss of enthusiasm " Winston Churchill.
Please Log in or Create an account to join the conversation.
- Kawboy
- Offline
- Sustaining Member
- Posts: 3153
- Thanks: 1110
Re: Vagaries of the different models
7 years 9 months ago
Tackelhappy- You gat the Eagle Eye Award for your double pinch bolt post on the '79 model year front forks.
Please Log in or Create an account to join the conversation.
- Tyler
- Offline
- Elite Member
- Posts: 251
- Thanks: 46
Re: Vagaries of the different models
7 years 9 months ago - 7 years 9 months ago

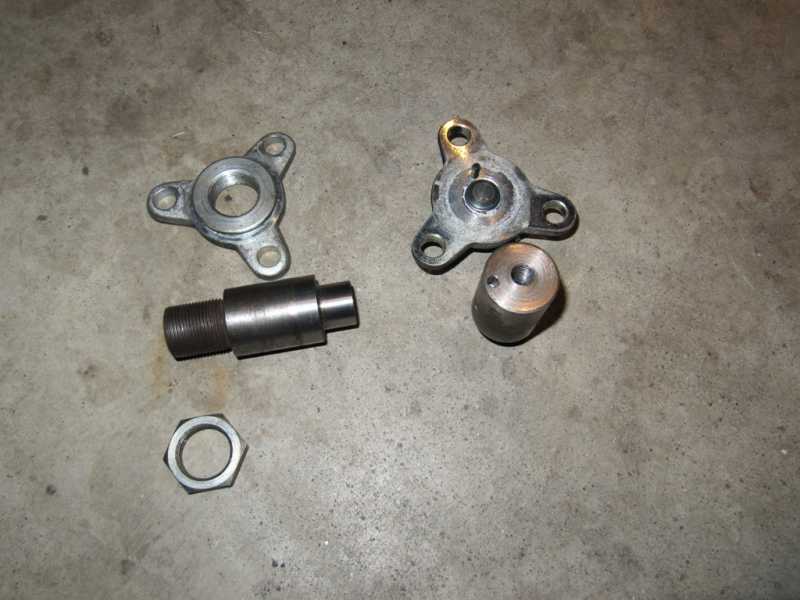

About the same time as that front fork change, the swing arm pins changed as well.
Originals were threaded into their holder and held with a lock nut, later ones are simple pins that most 1300's have.
Early pin is on the left.
Originals were threaded into their holder and held with a lock nut, later ones are simple pins that most 1300's have.
Early pin is on the left.
1981 KZ1300
Last edit: 7 years 9 months ago by Tyler.
The following user(s) said Thank You: Kawboy
Please Log in or Create an account to join the conversation.
- Kawboy
- Offline
- Sustaining Member
- Posts: 3153
- Thanks: 1110
Re: Vagaries of the different models
7 years 9 months agoMan you guys are sharp. Another Eagle Eye award to Tyler. Awesome !!
Please Log in or Create an account to join the conversation.
- hillsy
- Offline
- Premium Member
- Posts: 106
- Thanks: 25
Re: Vagaries of the different models
7 years 9 months ago
And those Goddamn "newer" swingarm pins are a b1tch to get out.
Cover them in NeverSeize when you put them back in!
Cover them in NeverSeize when you put them back in!
